10G SFP+ SMF 1550nm 100km LC Transceiver

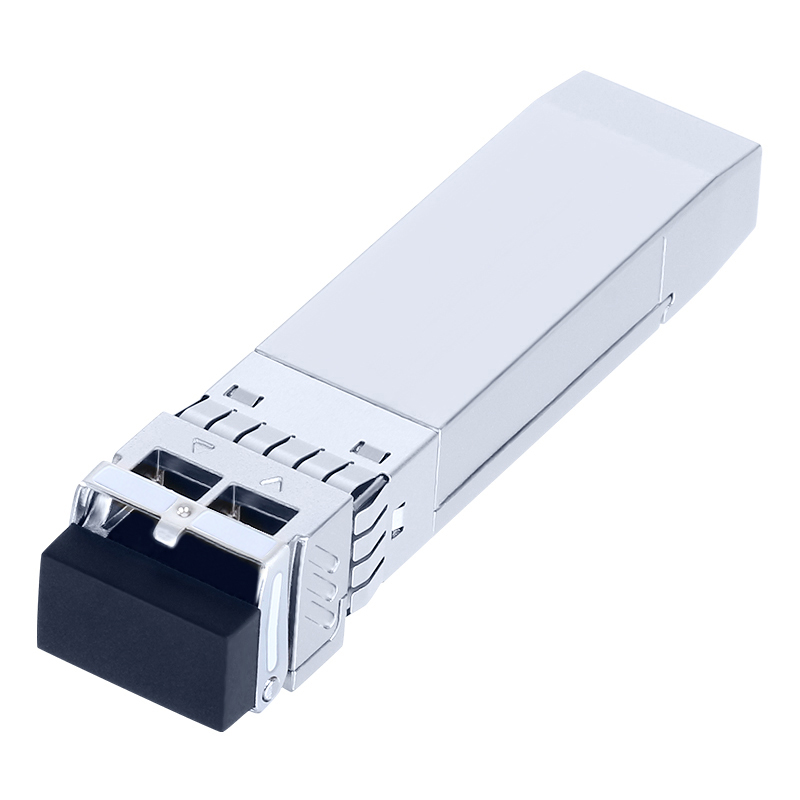

FIBERTOP 10G SFP+ SMF 1550nm 100km LC DOM Transceiver Module

SKU: SFP-SM55TG-A0DC

Product Highlights

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1550nm Cooled EML laser and APD photodiode, Up to 100km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

SFP+ 10G 100km

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

SFP-SM55TG-A0DC

Compatible OEM

FIBERTOP

Transceiver Type

ZR100km

Form Type

SFP+

Speed Description

10-Gigabit

Reach

100km

Wave length

1550nm

Media

SMF

Connector

TXPower

-1~+5dBm

Extinction Ratio

>8.2dBm

Receiver Sensitivity

<-23dBm

FIBERTOP 10G SFP+ SMF 1550nm 100km LC DOM Transceiver Module

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 100km transmission distance with SMF, The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM55TG-A0DC
Transceiver Type	ZR+	Reach	100km
Wavelength	1550nm	Form Type	SFP+
Speed Description	10G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 8.2 dB
TX Power	-1 ~ +5 dBm	Receiver Sensitivity	< -23 dBm
Applications	10Gbps Optical systems 10GBASE-ZR at 10.3125Gbps Other Optical links	Environment	Operating:0 to 70°C Storage: -40 to 85°C
