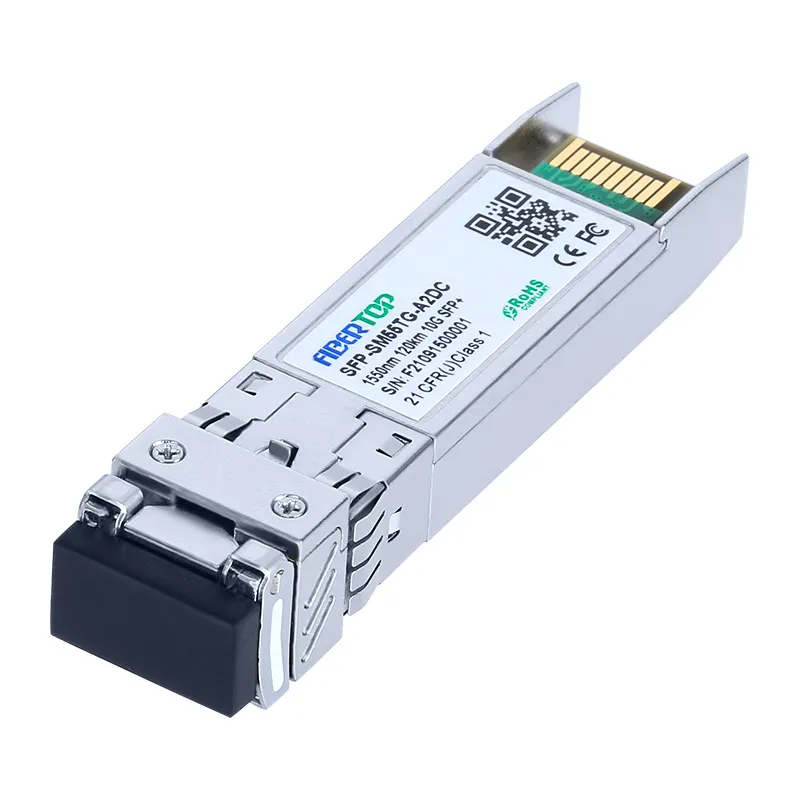

FIBERTOP 10GBASE-ZR SFP+ SMF 1550nm 120km DDM Transceiver

SKU: SFP-SM55TG-A2DC

Product Highlights

Supports 10.3Gbps bit rates

Hot-pluggable SFP+ footprint

1550nm Cooled EML laser and APD photodiode, Up to 120km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle, compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

SFP-SM55TG-A2D

Compatible OEM

FIBERTOP

Transceiver Type

EZR120km

Form Type

SFP+

Speed Description

10Gb/s

Reach

120km

Wave length

1550nm

Media

SMF

Connector

LCDuplex

TXPower

1~6dBm

Extinction Ratio

>8.2dBm

Receiver Sensitivity

<-25dBm

FIBERTOP 10GBASE-ZR SFP+ SMF 1550nm 120km DDM Transceiver

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 120km transmission distance with SMF.

The transceiver consists of three sections: a Cooled EML laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM55TG-A2D
Transceiver Type	EZR 120km	Reach	120km
Wavelength	1550nm	Form Type	SFP+
Speed Description	10Gb/s	Media	SMF
Connector	LC Duplex	Extinction Ratio	>8.2 dBm
TX Power	1~6 dBm	Receiver Sensitivity	<-25 dBm
Applications	10GBASE-ZR at 10.3125Gbps 10GBASE-ZW at 9.953Gbps Other Optical links	Environment	Operating: 0 to 70°C Storage: -40°C to 85°C
