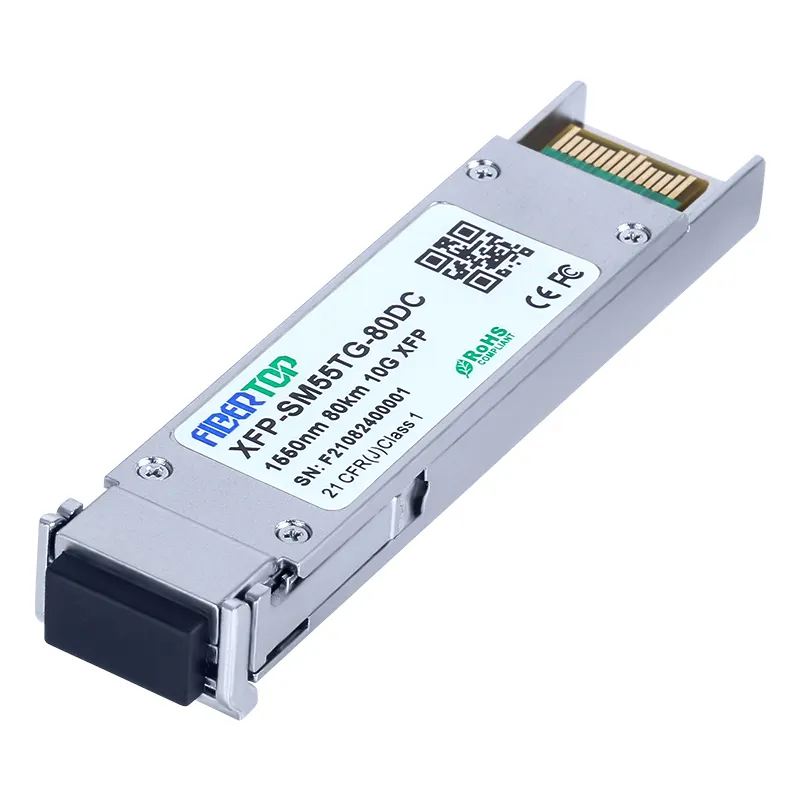

10G-XFP-ZR 10GBASE-ZR 1550nm 80km Transceiver Module 1

10G-XFP-ZR 10GBASE-ZR 1550nm 80km Transceiver Module 2

10G-XFP-ZR 10GBASE-ZR 1550nm 80km Transceiver Module

SKU: XFP-SM55TG-80DC

Product Highlights

Supports 9.953Gb/s to 11.3Gb/s bit rates

Hot-pluggable XFP footprint, Built-in digital diagnos

Maximum link length of 80km with SMF

1550nm Cooled EML laser and APD photodiode

XFP MSA package with duplex LC connector

No reference clock required

Power dissipation <3.5W

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

FIBERTOP 10G ZR XFP SMF 1550nm 80km LC DOM Transceiver Module

The XFP module is compliant with the 10G Small Form-Factor Pluggable (XFP) Multi-Source Agreement (MSA),supporting data-rate of 9.953~11.1Gbps, and transmission distance up to 80km on SMF. The transceiver module comprises a transmitter with 1550nm Cooled EML laser and a receiver with a APD photodiode. Transmitter and receiver are separate within a wide temperature range and offers optimum heat dissipation and excellent electromagnetic shielding thus enabling high port densities for 10 GbE systems.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	XFP-SM55TG-80DC
Transceiver Type	ZR	Reach	80km
Wavelength	1550nm	Form Type	XFP
Speed Description	10-Gigabit	Media	SMF
Connector	LC	Extinction Ratio	>8.2 dBm
TX Power	0~+4 dBm	Receiver Sensitivity	<-23 dBm
Applications	SONET OC-192&SDH STM-64 at 9.953Gbps 10GBASE-ZR/ZW 10G Ethernet Other optical links, up to 11.1Gbps	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
