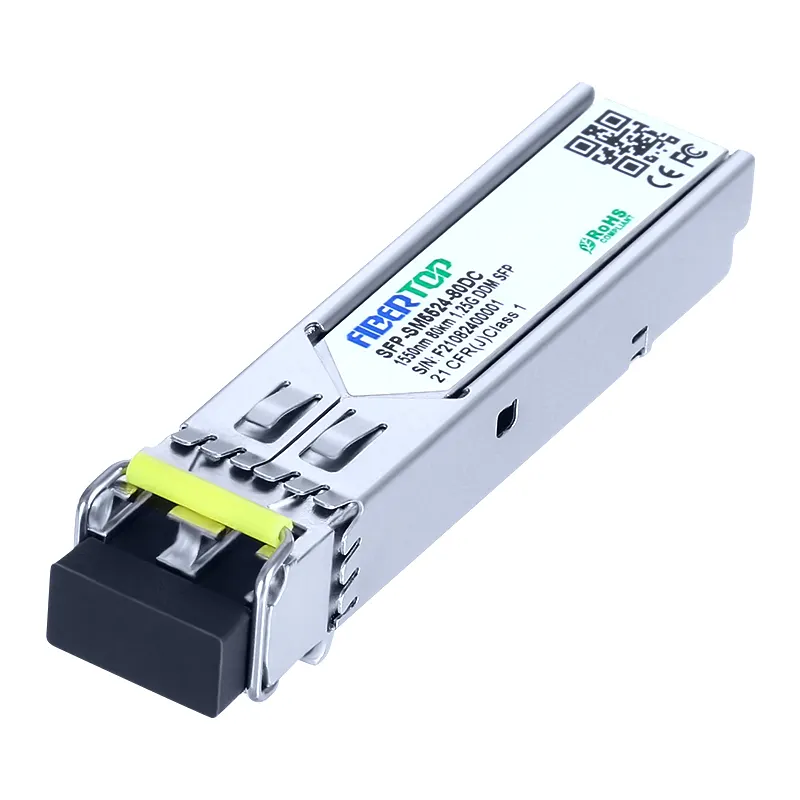

1.25G 1000Base SFP 1550nm 80km LC DOM Transceiver Module 1

1.25G 1000Base SFP 1550nm 80km LC DOM Transceiver Module 2

1.25G 1000Base SFP 1550nm 80km LC DOM Transceiver Module

SKU: SFP-SM5524-80DC

Product Highlights

Supports up to 1.25Gbps bit rates

Hot-pluggable SFP footprint

1550nm DFB laser and PIN photo detector, Up to 80km for SMF transmission

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

FIBERTOP 1.25G ZX SFP SMF 1550nm 80km LC DOM Transceiver Module

The 1.25G 1000Base SFP transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 80km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM5524-80DC
Transceiver Type	ZX	Reach	80km
Wavelength	1550nm	Form Type	SFP
Speed Description	1.25G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 9.0 dB
TX Power	0 ~ +5 dBm	Receiver Sensitivity	< -26 dBm
Applications	1.25Gbps Optical systems Gigabit Ethernet 1.063Gbps Fiber Channel	Environment	Operating:0°C to 70°C Storage: -40°C to 85°C
