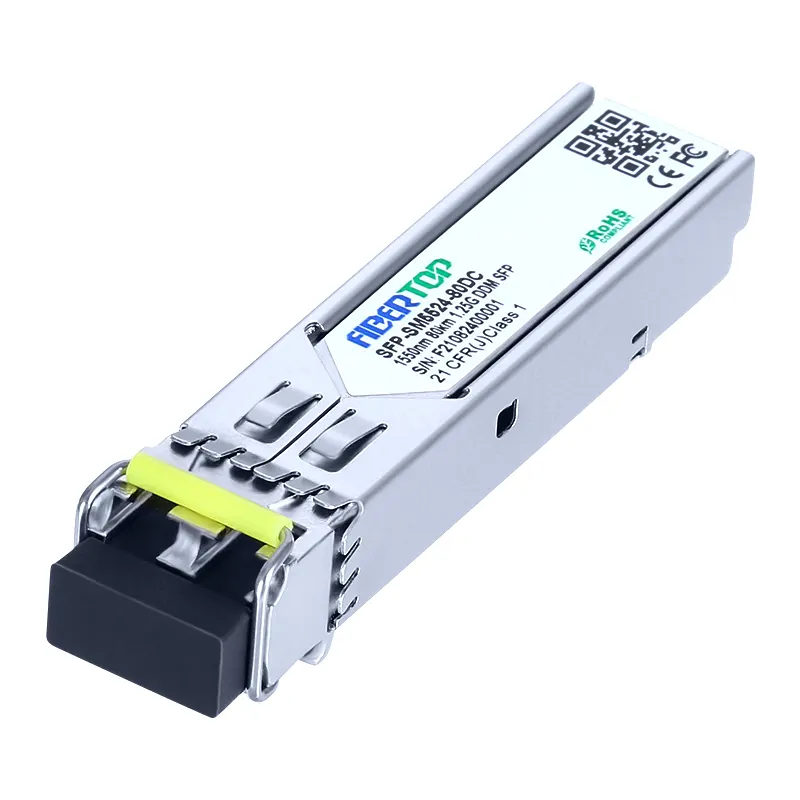

1.25Gbps SFP 100km 1550nm LC Single-Mode Transceiver Module 1

1.25Gbps SFP 100km 1550nm LC Single-Mode Transceiver Module 2

1.25Gbps SFP 100km 1550nm LC Single-Mode Transceiver Module

SKU: SFP-SM5524-A0xx

Product Highlights

Supports up to 1.25Gbps bit rates

Hot-pluggable SFP footprint

1550nm DFB laser and Super TIA+PIN photo detector, Up to 100km for SMF transmission

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

FIBERTOP 1.25Gbps SFP Transceiver, Single Mode, 100km Reach

The 1.25Gbps SFP 100km transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 100km transmission distance with SMF.

The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM5524-A0XX
Transceiver Type	EX	Reach	100km
Wavelength	1550nm	Form Type	SFP
Speed Description	1.25-Gigabit	Media	SMF
Connector	LC	Extinction Ratio	>9.0 dBm
TX Power	0~+5 dBm	Receiver Sensitivity	<-28 dBm
Applications	1.25Gbps Optical systems Gigabit Ethernet 1.063Gbps Fiber Channel Other Optical links	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
