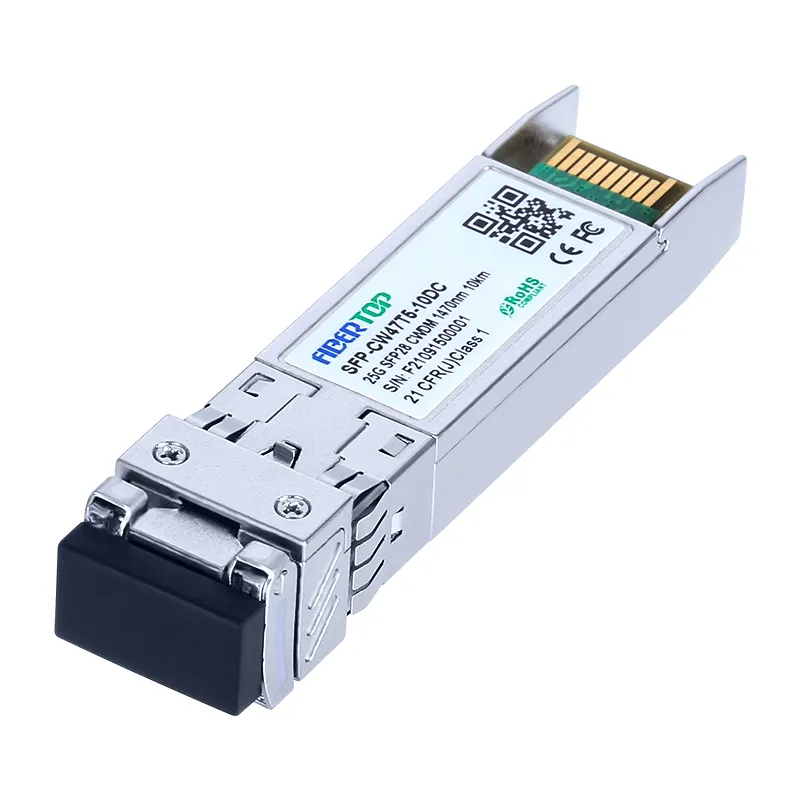

FIBERTOP 25G CWDM SFP28 SMF 1470nm 10km LC DOM Transceiver Module 1

FIBERTOP 25G CWDM SFP28 SMF 1470nm 10km LC DOM Transceiver Module 2

FIBERTOP 25G CWDM SFP28 SMF 1470nm 10km LC DOM Transceiver Module 3

FIBERTOP 25G CWDM SFP28 SMF 1470nm 10km LC DOM Transceiver Module

SKU: SFP-CW47T5-10DC

Product Highlights

Supports up to 25.78Gbps bit rates

Hot-pluggable SFP+ footprint

CWDM Cooled EML laser and PIN photodiode

Up to 10km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Single +3.3V power supply

Power dissipation <2.3W

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

SFP-CW47T5-10DC

Compatible OEM

FIBERTOP

Transceiver Type

CWDM

Form Type

SFP28

Speed Description

25-Gigabit

Reach

10km

Media

SMF

Connector

DuplexLC

TXPower

-1~+6dBm

Extinction Ratio

>6.0dBm

Receiver Sensitivity

<-14dBm

FIBERTOP 25G CWDM SFP28 SMF 1470nm 10km LC DOM Transceiver Module

The SFP28 transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-CW47T5-10DC
Transceiver Type	CWDM	Reach	10km
Wavelength	1470nm/1490nm/1510nm/1530nm 1550nm	Form Type	SFP28
Speed Description	25-Gigabit	Media	SMF
Connector	Duplex LC	Extinction Ratio	>6.0 dBm
TX Power	-1~+6 dBm	Receiver Sensitivity	<-14 dBm
Applications	25G Ethernet CPRI 10	Environment	Operating:0 to70°C
