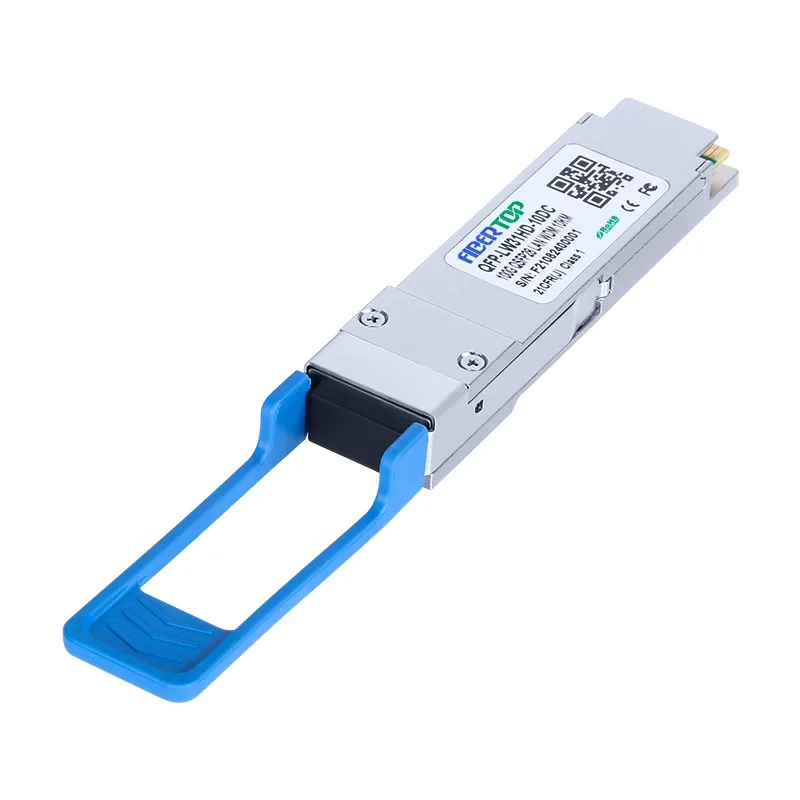

QSFP28 100GBASE LR4 1310nm 10km Transceiver 1

QSFP28 100GBASE LR4 1310nm 10km Transceiver 2

QSFP28 100GBASE LR4 1310nm 10km Transceiver

SKU: QFP-LW31HD-10DC

Product Highlights

Support for 101.3Gb/s and 112Gb/s aggregate bit rates

Hot-pluggable QSFP28 form factor

Maximum link length of 10km on Single Mode Fiber (SMF)

Built-in digital diagnostic functions

4x28Gb/s DFB-based LAN-WDM transmitter

Single +3.3V power supply

RoHS compliant

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-LW31HD-10DC

Compatible OEM

FIBERTOP

Transceiver Type

LR4

Form Type

QSFP28

Speed Description

103.1Gb/sand112Gb/s

Reach

10km

Media

SMF

Connector

TXPower

-4.3~4.5dBm

Extinction Ratio

>4dB

Receiver Sensitivity

<-8.6dBm

QSFP28 100GBASE LR4 Transceiver SMF 1310nm 10km LC DOM

QSFP28 100GBASE LR4 is Multi-rate 100Gb/s QSFP28 LR4 transceiver.

It is compliant with the QSFP28 MSA, IEEE 802.3ba and OTU4 4I1-9D1F.

QSFP28 100G LR4 transceiver modules are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-LW31HD-10DC
Transceiver Type	LR4	Reach	10km
Wavelength	1294.53 – 1296.59 1299.02 – 1301.09 1303.54 – 1305.63 1308.09 – 1310.19	Form Type	QSFP28
Speed Description	103.1Gb/s and 112Gb/s	Media	SMF
Connector	LC	Extinction Ratio	>4 dB
TX Power	-4.3~4.5 dBm	Receiver Sensitivity	<-8.6 dBm
Applications	100GBASE-LR4 100G Ethernet OTN OTU4 4I1-9D1F	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
