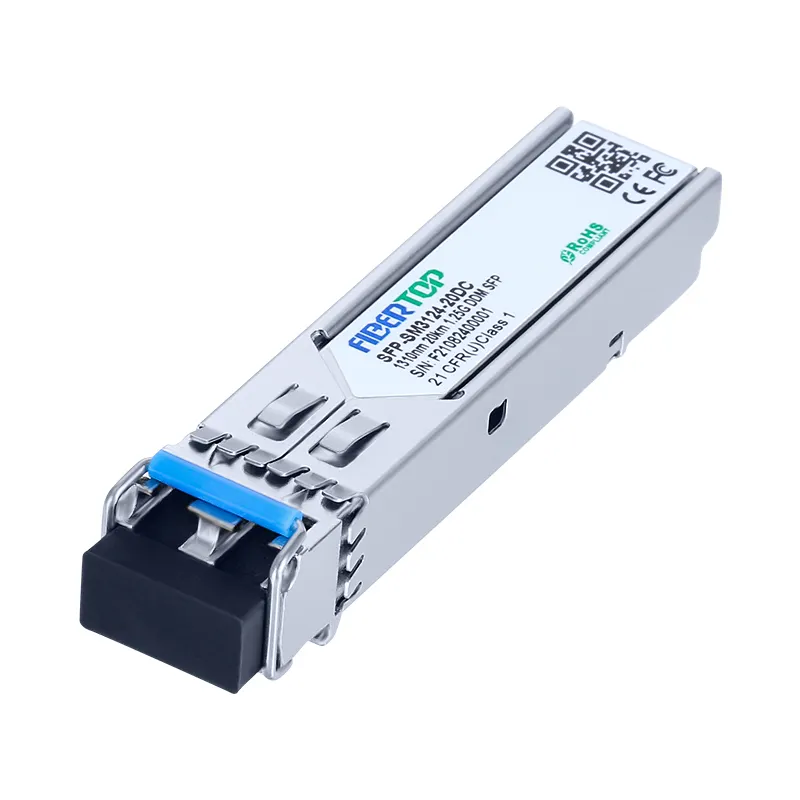

MikroTik SFP 1.25G 20km 1310nm LX LC Industrial Transceiver 1

MikroTik SFP 1.25G 20km 1310nm LX LC Industrial Transceiver 2

MikroTik SFP 1.25G 20km 1310nm LX LC Industrial Transceiver

SKU: SFP-SM3124-20DI

Product Highlights

Supports up to 1.25Gbps bit rates

Hot-pluggable SFP footprint

1310nm FP laser and PIN photo detector, Up to 20km for SMF transmission

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The SFP 1000BASE Industrial transceivers are high performance, cost effective modules supporting data rate of 1.25Gbps and 20km transmission distance with SMF.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Compatible OEM	MikroTik	Compatible With OEM Part Number(s)	S-31DLC20
Transceiver Type	LX	Reach	20km
Wavelength	1310nm	Form Type	SFP
Speed Description	1.25G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 9.0 dB
TX Power	-9 ~ 0 dBm	Receiver Sensitivity	< -23 dBm
Applications	1.25Gbps Optical systems Gigabit Ethernet 1.063Gbps Fiber Channel	Environment	Operating:0°C to 70°C Storage: -40°C to 85°C
