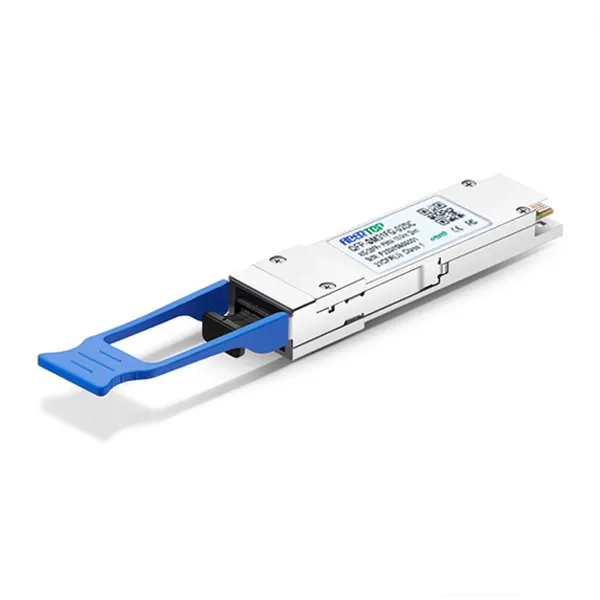

H3C® 4x10G-IR QSFP-40G-IR4 1310nm PSM4 2km MPO Transceiver 1

H3C® 4x10G-IR QSFP-40G-IR4 1310nm PSM4 2km MPO Transceiver 2

H3C® 4x10G-IR QSFP-40G-IR4 1310nm PSM4 2km MPO Transceiver

SKU: QFP-SM31FG-02DC

Product Highlights

Four-channel full-duplex transceiver modules

Transmission data rate up to 11.2Gbit/s per channel

Up to 2km transmission of single mode fiber

Low power consumption <2.5W,meet class 3

3.3V power supply voltage

Hot Pluggable QSFP+ form factor

Single MPO connector receptacle

RoHS 6 compliant

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The QSFP+ 4x10G-IR 1310nm PSM4 2km is a Four-Channel, Pluggable, Parallel, Fiber-OpticQSFP+Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel, PCIeandSASApplications. The QSFP full-duplex optical module offers 4 independent transmit and receivechannels,each capable of 11.2Gbps operation for an aggregate data rate of 40Gbps 2kmusing singlemodefiber.These modules are designed to operate over single mode fiber systems using 1310nm DFB laserarray.An optical fiber ribbon cable with an MPO/ MTPTM connector can be pluggedintotheQSFPmodule receptacle. QSFP+ PSM IR4 is one kind of parallel transceiver which provides increasedportdensity and total system cost savings.

Technical Specification

Compatible OEM	H3C®	Compatible With OEM Part Number(s)	QFP-SM31FG-02DC
Transceiver Type	PSM4	Reach	2km
Wavelength	1310nm	Form Type	QSFP+
Speed Description	40G	Media	SMF
Connector	MPO	Extinction Ratio	> 3.5 dB
TX Power	-5.5 ~ 2.3 dBm	Receiver Sensitivity	< -11.5 dBm
Applications	Infiniband QDR and DDR Interconnects 40G Ethernet Proprietary High Speed Interconnections Data center	Environment	Operating:0°C to 70°C Storage: -40°C to 85°C

Compatibility

• H3C network switches	• H3C network routers
• H3C firewalls	• H3C security gateway
• H3C fiber media converter	• H3C network adapters
• H3C network interface card (NICs)	• H3C NAS
