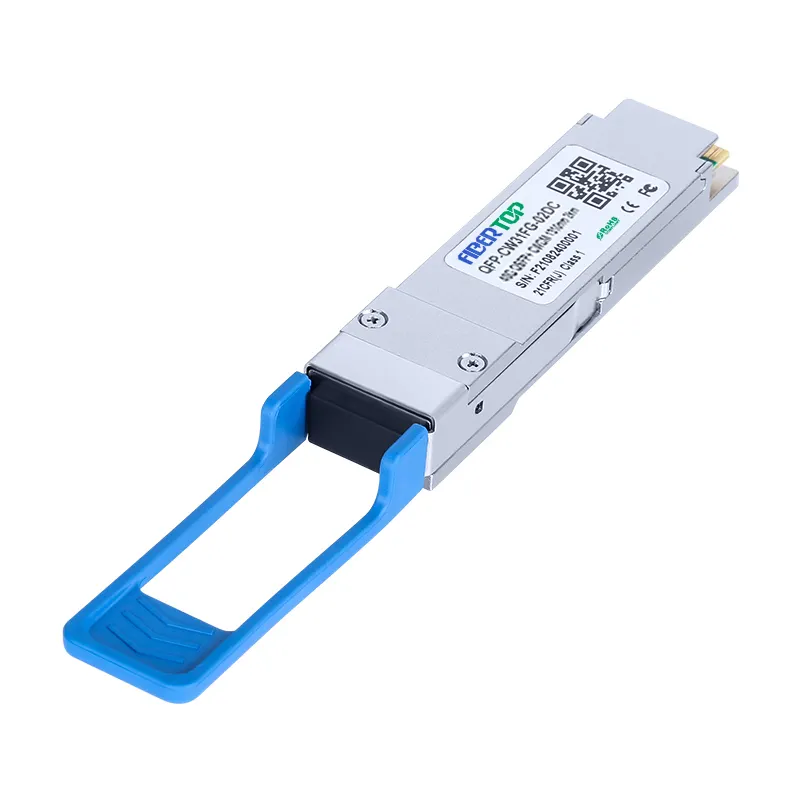

H3C® 40GBASE-LX4 QSFP+ 40G 1310nm 2km Transceiver 1

H3C® 40GBASE-LX4 QSFP+ 40G 1310nm 2km Transceiver 2

H3C® 40GBASE-LX4 QSFP+ 40G 1310nm 2km Transceiver

SKU: QFP-CW31FG-02DC

Product Highlights

4 CWDM lanes MUX/DEMUX design

Transmission data rate up to 11.3Gbps per channel

SMF LC duplex connector

Hot Pluggable QSFP+ form factor

Up to 2km SMF or 150m om4 MMF transmission

Compatible with RoHS

Single +3.3V power supply

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The 40GBASE-LX4 QSFP+ 40G Ethernet throughput up to 150m over OM3 multimode fiber (MMF) and 2km over single mode fiber (SMF) using a wavelength of 1310nm via duplex LC connectors. This transceiver is compliant with QSFP+ MSA and IEEE 802.3ba 40GBASE-LM4 standard. Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP+ MSA, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications.

Technical Specification

Compatible OEM	H3C®	Compatible With OEM Part Number(s)	QFP-CW31FG-02DC
Transceiver Type	CWDM4	Reach	2km
Wavelength	1264.5~1277.5 1284.5~1297.5 1304.5~1317.5 1324.5~1337.5	Form Type	QSFP+
Speed Description	40G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 3.5 dB
TX Power	-7 ~ +2.3 dBm	Receiver Sensitivity	< -11.5 dBm
Applications	40GBASE-LX4 Ethernet 4Infiniband QDR and DDR interconnects Client-side 40G Datacom connections	Environment	Operating: 0°C to 70°C

Compatibility

• H3C network switches	• H3C network routers
• H3C firewalls	• H3C security gateway
• H3C fiber media converter	• H3C network adapters
• H3C network interface card (NICs)	• H3C NAS
