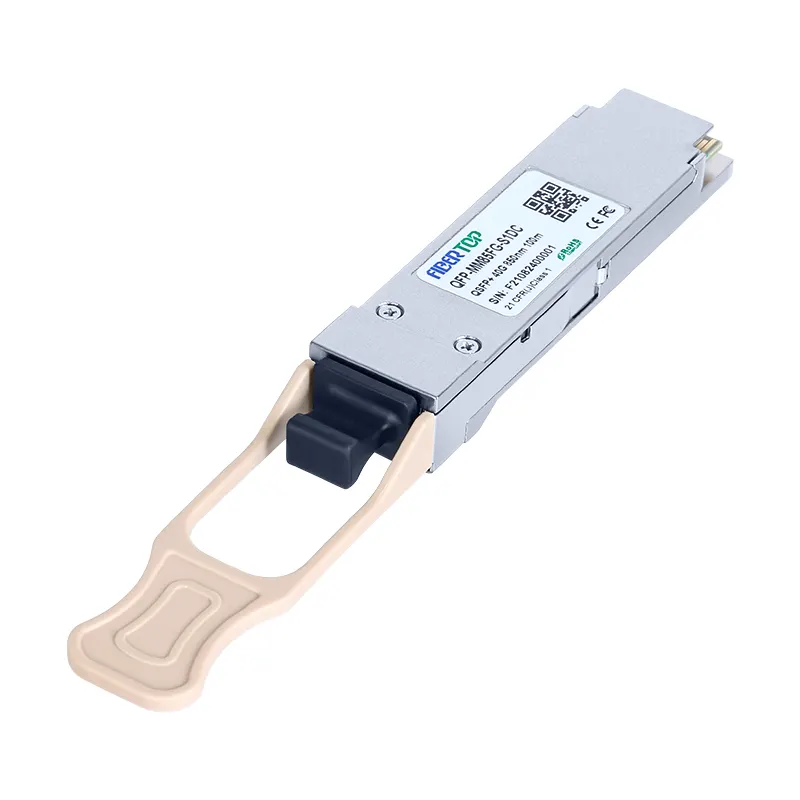

Huawei® QSFP-100G-SR4 QSFP28 100GBASE-SR4 100m Transceiver 1

Huawei® QSFP-100G-SR4 QSFP28 100GBASE-SR4 100m Transceiver 2

Huawei® QSFP-100G-SR4 QSFP28 100GBASE-SR4 100m Transceiver

SKU: QFP-MM85HG-S1DC

Product Highlights

Four-channel full-duplex transceiver

25.78Gb/s data rate per channel

Maximum link length of 70m on OM3(MMF) ,100m on OM4 (MMF)

Power dissipation < 2.5W

Built-in digital diagnostic functions

Built-in CDR

850nm VCSEL transmitter

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-MM85HG-S1DC

Compatible OEM

Huawei

Transceiver Type

SR4

Form Type

QSFP28

Speed Description

100G

Reach

100m

Wave length

850nm

Media

MMF

Connector

MPO

TXPower

-8.4~+2.4dBm

Extinction Ratio

>3dB

Receiver Sensitivity

<-5.6dBm

FIBERTOP HW QSFP-100G-SR4 Compatible 100GBASE-SR4 QSFP28 850nm 100m Transceiver

This HW QSFP-100G-SR4 compatible QSFP28 100GBASE-SR4 100m transceiver is a low-cost 100G QSFP transceiver replacement manufactured by a third-party supplier – FIBERTOP. This compatible 100G transceiver allows the IT manager to avoid overpaying the HW original QSFP-100G-SR4 transceiver. It is suitable for 100GBASE Ethernet through put up to 100m over OM4 multimode fiber (MMF) at a wavelength of 850nm using an MTP/MPO-12 connector. The compatible QSFP-100G-SR4 transceiver offers high-density and low-power 100 Gigabit Ethernet connectivity options for data centers, high-performance computing networks, enterprise core, distribution layers, and service provider applications.

Technical Specification

Compatible OEM	Huawei®	Compatible With OEM Part Number(s)	QFP-MM85HG-S1DC
Transceiver Type	SR4	Reach	100m
Wavelength	850nm	Form Type	QSFP28
Speed Description	100G	Media	MMF
Connector	MPO	Extinction Ratio	> 3 dB
TX Power	-8.4 ~ +2.4 dBm	Receiver Sensitivity	< -5.6 dBm
Applications	100GBASE-SR4 100G Ethernet 40GBASE-SR4 40G Ethernet Server-server clusters	Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C

Compatibility

• Huawei network switches	• Huawei network routers
• Huawei firewalls	• Huawei security gateway
• Huawei fiber media converter	• Huawei network adapters
• Huawei network interface card (NICs)	• Huawei NAS
