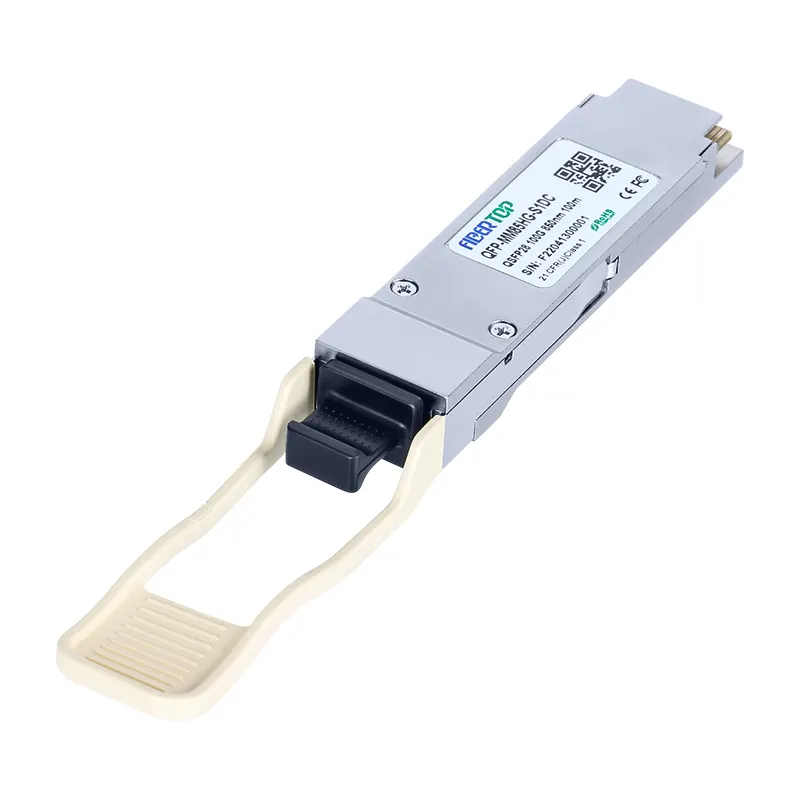

Juniper 100GBASE-SR4 QSFP-100G-850nm-100m Industrial Transceiver 1

Juniper 100GBASE-SR4 QSFP-100G-850nm-100m Industrial Transceiver 2

Juniper 100GBASE-SR4 QSFP-100G-850nm-100m Industrial Transceiver

SKU: QFP-MM85HG-S1DC

Product Highlights

Four-channel full-duplex transceiver

25.78Gb/s data rate per channel

Maximum link length of 70m on OM3(MMF) ,100m on OM4 (MMF)

Power dissipation < 2.5W

Built-in digital diagnostic functions，Built-in CDR

850nm VCSEL transmitter，Good EMI performance

Single 3.3V power supply

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The Juniper QSFP-100G-SR4 Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 100m over OM4 multimode fiber (MMF) using a wavelength of 850nm via an MTP/MPO-12 connector.

This transceiver is compliant with IEEE 802.3bm 100GBASE-SR4 and CAUI-4 standard.

Digital diagnostics functions are also available via the I2C interface, as specified by the QSFP28 MSA, to allow access to real-time operating parameters.

With these features, this easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core, distribution layer and telecom applications.

Technical Specification

Compatible OEM	Juniper®	Compatible With OEM Part Number(s)	QFP-MM85HG-S1DC
Transceiver Type	SR4	Reach	100m
Wavelength	850nm	Form Type	QSFP28
Speed Description	100G	Media	MMF
Connector	MPO	Extinction Ratio	> 3.0 dB
TX Power	-8.4 ~ 2.4 dBm	Receiver Sensitivity	< -5.6 dBm
Applications	100GBASE-SR4 100G Ethernet 40GBASE-SR4 40G Ethernet High-speed interconnects within/between switches, routers and transport equipment Server-server clusters Super-computinginterconnections Interconnects rack-to-rack, shelf-to-shelf, board-to-board, board-to-optical backplane	Environment	Operating:-40°C to 85°C Storage: -40°C to 85°C

Compatibility

• Juniper network switches	• Juniper network routers
• Juniper firewalls	• Juniper security gateway
• Juniper fiber media converter	• Juniper network adapters
• Juniper network interface card (NICs)	• Juniper NAS
