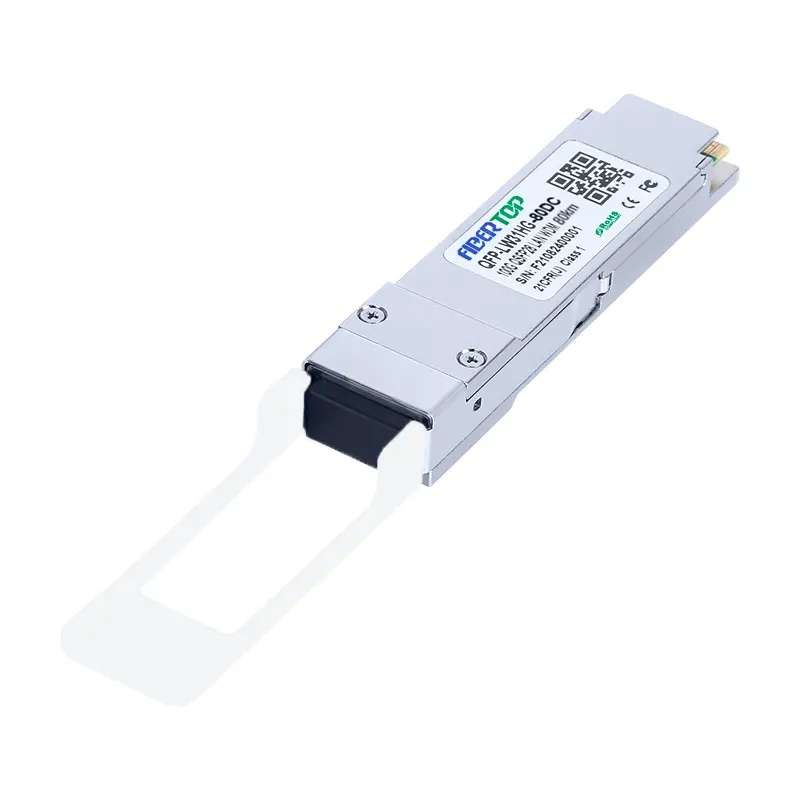

Juniper® 100GBASE-ZR4 QSFP28 100G 80km Transceiver 1

Juniper® 100GBASE-ZR4 QSFP28 100G 80km Transceiver 2

Juniper® 100GBASE-ZR4 QSFP28 100G 80km Transceiver

SKU: QFP-LW31HG-80DC

Product Highlights

Support line rates from 103.125 Gb/s

Lane bit rate 25.78 Gb/s 100GE

Up to 80km transmission with KR4-FEC

LAN WDM EML laser and PIN receiver with SOA

Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS

High speed I/O electrical interface (CAUI-4)

I2C interface with integrated Digital Diagnostic monitoring

QSFP28 MSA package with duplex LC connector

Single +3.3V power supply

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

This Juniper® QSFP-100G-ZR4 compatible 100GBASE-ZR4 QSFP28 transceivers is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector. A block diagram is shown in Figure.

Technical Specification

Compatible OEM	Juniper®	Compatible With OEM Part Number(s)	QFP-LW31HG-80DC
Transceiver Type	LAN-WDM	Reach	80km
Wavelength	1294.53~1296.59 1299.02~1301.09 1303.54~1305.63 1308.09~1310.19	Form Type	QSFP28
Speed Description	100G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 8.2 dB
TX Power	1 ~ 6.5 dBm	Receiver Sensitivity	< -27 dBm
Applications	100GBASE-ZR4 Ethernet 100G Datacom& Telecom connections	Environment	Operating:0°C to 70°C

Compatibility

• Juniper network switches	• Juniper network routers
• Juniper firewalls	• Juniper security gateway
• Juniper fiber media converter	• Juniper network adapters
• Juniper network interface card (NICs)	• Juniper NAS
