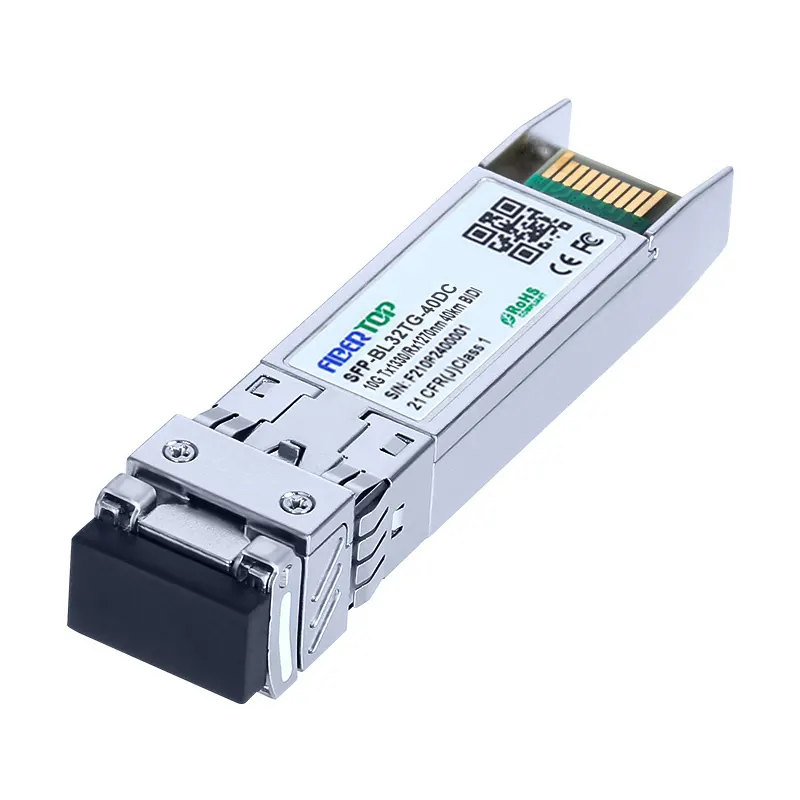

MikroTik® SFP 10G BIDI 40km Tx1330nm/Rx1270nm Transceiver 1

MikroTik® SFP 10G BIDI 40km Tx1330nm/Rx1270nm Transceiver 2

MikroTik® SFP 10G BIDI 40km Tx1330nm/Rx1270nm Transceiver

SKU: SFP-BL32TG-40DC

Product Highlights

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

1330nm DFB laser and PIN photodiode, Up to 40km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with single LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

This 10G BiDi SFP+ transceiver module is equivalent to MikroTik 10GBASE-ER Transceiver. This Bi-Directional SFP+ transceiver is designed for 10-Gigabit Ethernet links up to 40km over a single-strand Single Mode fiber. This BiDi SFP+ module is programmed to work with a wide range of MikroTik 10 Gigabit Ethernet (10 GbE) Switches, Routers, Network Interface Cards (NICs), NAS and 10G Media Converters. It provides an ideal replacement to high-cost MikroTik S+32LC40D 10G BiDi SFP+ 40km transceiver.

Technical Specification

Compatible OEM	MikroTik®	Compatible With OEM Part Number(s)	SFP-BL32TG-40DC
Transceiver Type	BIDI	Reach	40km
Wavelength	Tx1330nm/Rx1270nm	Form Type	SFP+
Speed Description	10G	Media	SMF
Connector	Simplex LC	Extinction Ratio	> 3.5 dB
TX Power	-1 ~ +5 dBm	Receiver Sensitivity	< -15 dBm
Applications	10Gbps Optical systems 10GBASE-LR at 10.3125Gbps Other Optical links	Environment	Operating: 0°C to 70°C Storage: -40°C to 85°C

Compatibility

• MikroTik network switches	• MikroTik network routers
• MikroTik firewalls	• MikroTik security gateway
• MikroTik fiber media converter	• MikroTik network adapters
• MikroTik network interface card (NICs)	• MikroTik NAS
