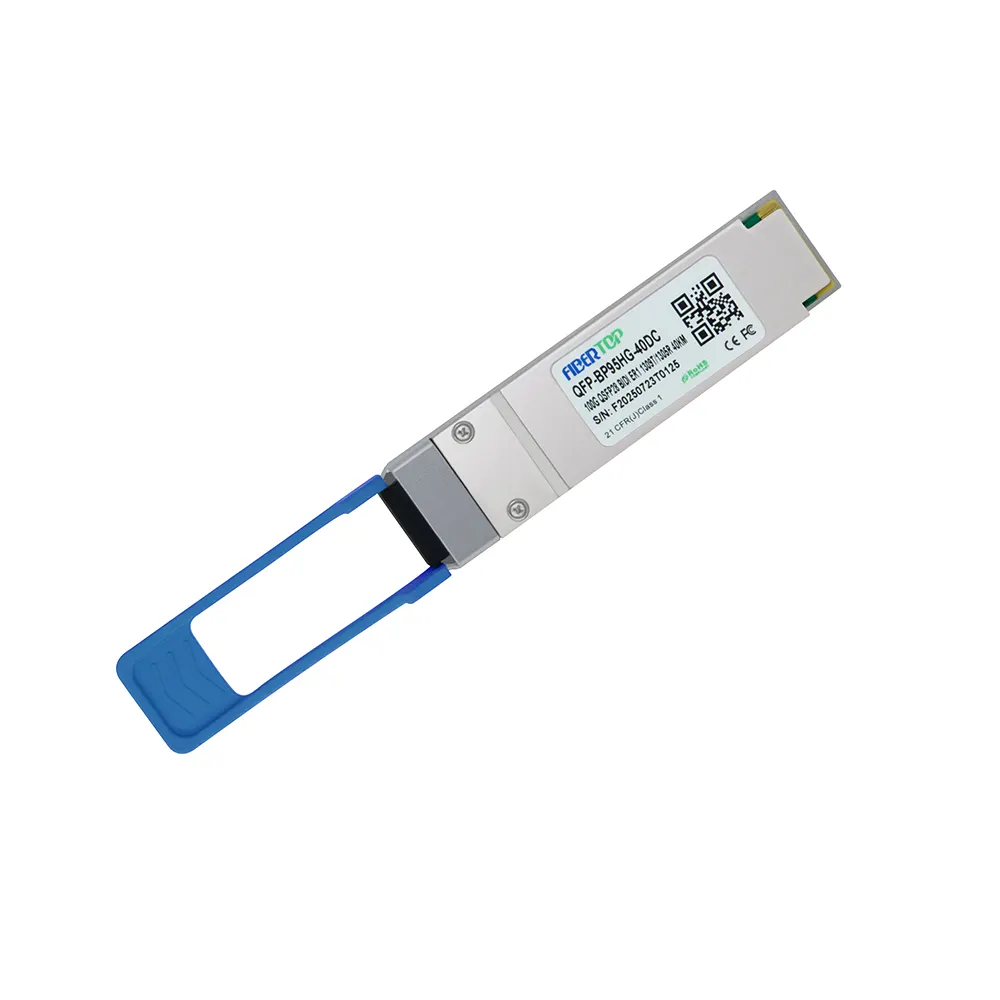

QSFP28 100G BIDI 40km 1309nm/1304nm Transceiver
SKU: QFP-BP95HG-40DC
Product Highlights
Supports 100GBASE-ER4 BIDI
Lane signaling rate 106.25Gb/s with PAM4
Up to 40km transmission on SMF
EML Laser and APD receiver
4x25.78Gb/s with NRZ electrical interface (CAUI-4)
High speed I/O electrical interface
I2C interface with integrated Digital Diagnostic monitoring
QSFP28 MSA package with simplex LC connector
5.0
order
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
payments:
Required Products
Total price discount:
quantity
Discount
price
Compatible With OEM Part Number(s)
QFP-BP95HG-40DC
Compatible OEM
FIBERTOP
Transceiver Type
BIDI
Form Type
QSFP28
Speed Description
100G
Reach
40km
Wave length
1309nm/1304nm
Media
SMF
Connector
SimplexLC
TXPower
1.7~7.1dBm
Extinction Ratio
>5dB
Receiver Sensitivity
<（-13.8
QSFP28 100G BIDI 40km single fiber optical transceiver module (1309nm/1304nm) is designed for use in 100 Gigabit Ethernet links over 10km single mode fiber. The module incorporate one channel optical signal and operates on 1309nm and 1304nm wavelength. Compliant with the QSFP28 MSA. Digital diagnostics functions are available via the I2C interface, as specified by the QSFP28 MSA.
Technical Specification
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-BP95HG-40DC |
| Transceiver Type | BIDI | Reach | 40km |
| Wavelength | 1309nm/1304nm | Form Type | QSFP28 |
| Speed Description | 100G | Media | SMF |
| Connector | Simplex LC | Extinction Ratio | > 5 dB |
| TX Power | 1.7 ~ 7.1 dBm | Receiver Sensitivity | < （-13.8,-15.2+TECQ） dBm |
| Applications |
100GBASE-LR BIDI |
Environment |
Operating: 0°C to 70°C
|
