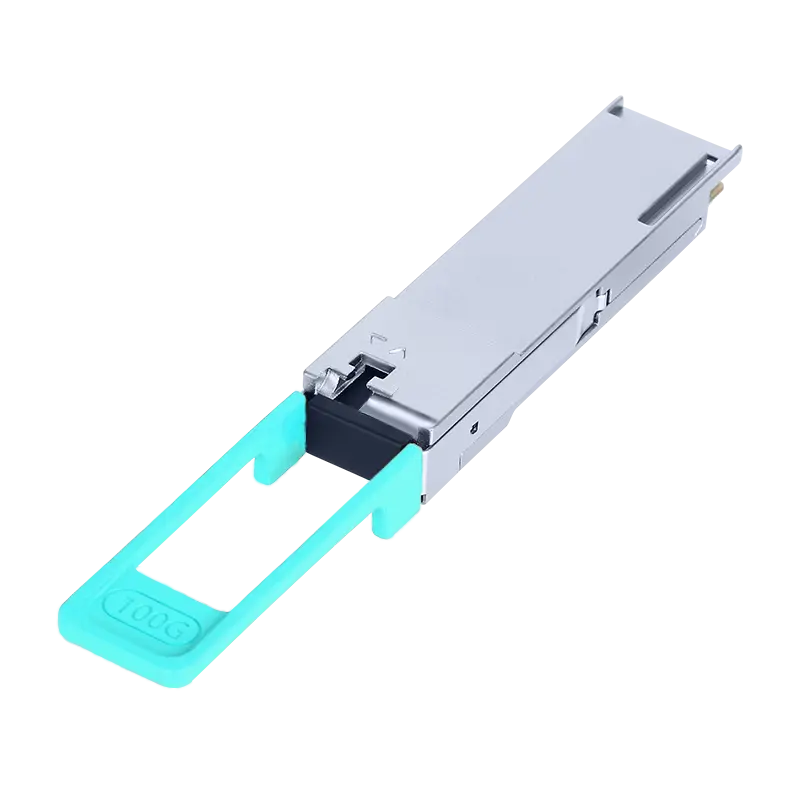

QSFP28 100G BIDI 80km 100GBASE-ZR4 LAN WDM Transceiver

SKU: QFP-BL23HG-80DC

Product Highlights

Supports 103.125Gb/s aggregate bit rate

Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX

LAN WDM EML laser and PIN receiver with SOA

Up to 80km reach for G.652 SMF

Hot pluggable 38 pin electrical interface

Single +3.3V power supply

Maximum power consumption 5.5W

QSFP28 100G BIDI 80km

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-BL23HG-80DC

Compatible OEM

FIBERTOP

Transceiver Type

BIDI

Form Type

QSFP28

Speed Description

100G

Reach

80km

Media

SMF

Connector

SimplexLC

TXPower

-0.3~+4.0dBm

Extinction Ratio

＞6dB

Receiver Sensitivity

<-26dBm

QSFP28 100G BIDI 80km 100GBASE-ZR4 LAN WDM Transceiver

QSFP28 100G BIDI is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-BL23HG-80DC
Transceiver Type	BIDI	Reach	80km
Wavelength	1272.55~1274.54nm 1276.89~1278.89nm 1281.25~1283.27nm 1285.65~1287.68nm	Form Type	QSFP28
Speed Description	100G	Media	SMF
Connector	Simplex LC	Extinction Ratio	＞6 dB
TX Power	-2.9 ~ 6 dBm	Receiver Sensitivity	< -26 dBm
Applications	100GBASE-ZR4 Ethernet Links Infiniband QDR and DDR interconnects Telecom networking	Environment	Operating:0 to 70℃

Questions & Answers

Q：Can your 100G BIDI transmit 80km?

A：Yes, we currently have two options available, please contact us for any questions.
