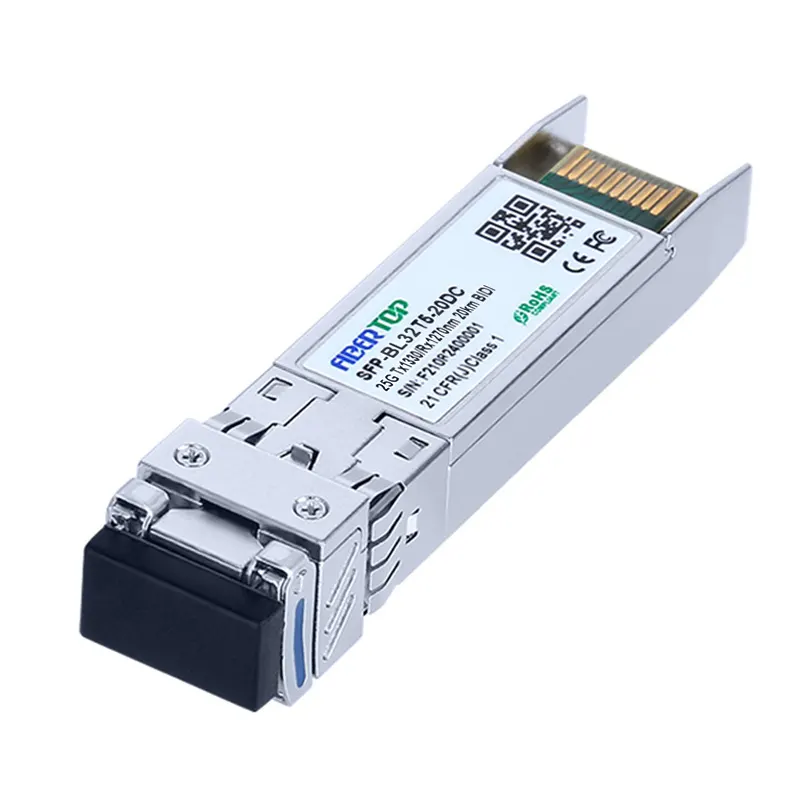

SFP28 25G BIDI 20km 25GBASE-LR SMF Tx1330/Rx1270 Transceiver 1

SFP28 25G BIDI 20km 25GBASE-LR SMF Tx1330/Rx1270 Transceiver 2

SFP28 25G BIDI 20km 25GBASE-LR SMF Tx1330/Rx1270 Transceiver 3

SFP28 25G BIDI 20km 25GBASE-LR SMF Tx1330/Rx1270 Transceiver

SKU: SFP-BL32T5-20DC

Product Highlights

Supports up to 25.78Gbps bit rates

Hot-pluggable SFP+ footprint

1330nm DFB laser and PIN photodiode, Up to 20km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with single LC receptacle, compatible with RoHS

Single +3.3V power supply

Duplex LC receptacles

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

SFP28 25G BIDI 20km 25GBASE-LR SMF Tx1330/Rx1270 Transceiver

The SFP28 transceivers are high performance, cost effective modules supporting data rate of 25.78Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-BL32T5-20DC
Transceiver Type	BIDI	Reach	20km
Wavelength	Tx1330nm/Rx1270nm	Form Type	SFP28
Speed Description	25G	Media	SMF
Connector	Single LC	Extinction Ratio	> 3.5 dB
TX Power	0 ~ 6.0 dBm	Receiver Sensitivity	< -13.3 dBm
Applications	25GBASE-LR	Environment	Operating: 0 to 70°C Storage: -40 to 85°C
