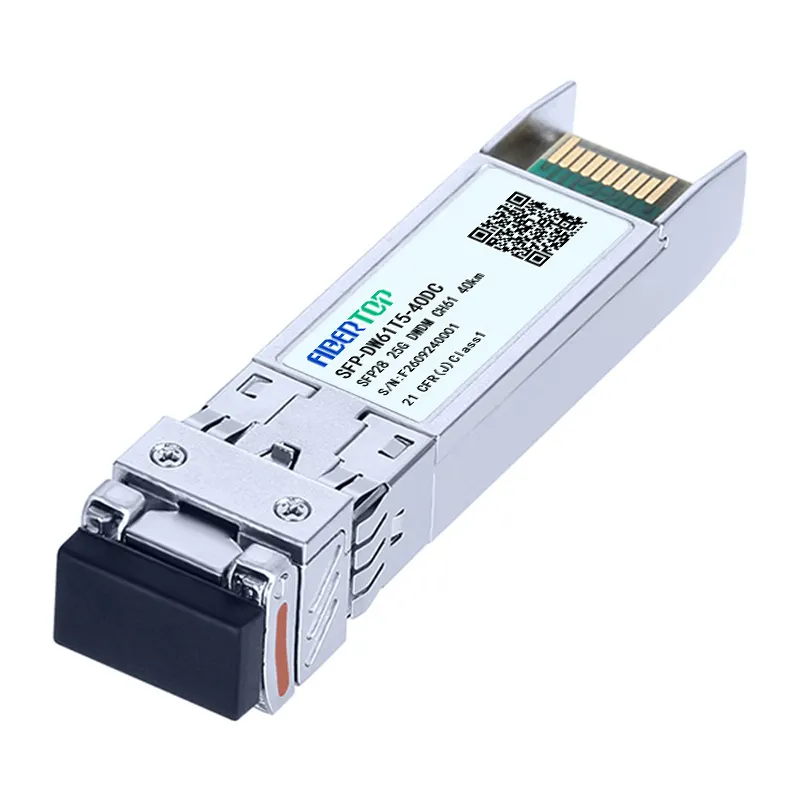

25GBASE-ER4 SFP28 25G DWDM 40km Transceiver

SKU: SFP-DWxxT5-40DC

Product Highlights

Supports up to 25.78Gbps bit rates

Hot-pluggable SFP+ footprint

100GHz ITU, C Band DWDM Cooled EML laser and APD photodiode,

Up to 40km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Real Time Digital Diagnostic Monitoring

Operating case temperature: 0 to +70°C

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

SFP28 25G DWDM 40km Transceiver

The SFP‑DWxxT5‑40DCP is high‑performance SFP28 DWDM transceiver with 25.78Gbps bit rate. Based on 100 GHz ITU C‑Band wavelength grid, it adopts cooled EML laser transmitter and high‑sensitivity APD photodiode with TIA preamplifier, achieving up to 40 km transmission over single‑mode fiber(SMF). It comes with hot‑pluggable SFP+ footprint and duplex LC receptacle, supporting real‑time DDM digital diagnostic monitoring complying with SFF‑8472. Powered by single +3.3 V supply with power dissipation below 3.3 W, the module operates at 0℃~70℃ case temperature. It meets Class I laser safety, SFP+ MSA and RoHS requirements, ideal for 25G Ethernet, metro DWDM wavelength‑division‑multiplexing and long‑distance data‑center interconnection.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-DWxxT5-40DC
Transceiver Type	ER4	Reach	40km
Wavelength	DWDM	Form Type	SFP28
Speed Description	25G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 6 dB
TX Power	-1 ~ 4 dBm	Receiver Sensitivity	< -20 dBm
Applications	High performance computing, interconnect, Data center, 25G Ethernet links	Environment	Operating: 0 to 70°C

λC Wavelength Guide

ITU Channel Product Code	Frequency(THz)	Wavelength	ITU Channel Product Code	Frequency(THz)	Wavelength
18	191.8	1563.05	40	194.0	1545.32
19	191.9	1562.23	41	194.1	1544.53
20	192.0	1561.42	42	194.2	1543.73
21	192.1	1560.61	43	194.3	1542.94
22	192.2	1559.79	44	194.4	1542.14
23	192.3	1558.98	45	194.5	1541.35
24	192.4	1558.17	46	194.6	1540.56
25	192.5	1557.36	47	194.7	1539.77
26	192.6	1556.55	48	194.8	1538.98
27	192.7	1555.75	49	194.9	1538.19
28	192.8	1554.94	50	195.0	1537.40
29	192.9	1554.13	51	195.1	1536.61
30	193.0	1553.33	52	195.2	1535.82
31	193.1	1552.52	53	195.3	1535.04
32	193.2	1551.72	54	195.4	1534.25
33	193.3	1550.92	55	195.5	1533.47
34	193.4	1550.12	56	195.6	1532.68
35	193.5	1549.32	57	195.7	1531.90
36	193.6	1548.51	58	195.8	1531.12
37	193.7	1547.72	59	195.9	1530.33
38	193.8	1546.92	60	196.0	1529.55
39	193.9	1546.12	61	196.1	1528.77

Frequently Asked Questions

Q: What ITU channels are supported?

A: It supports 100 GHz ITU C‑band CH18‑CH61, wavelength range 1528.77 nm ~1563.05 nm, custom wavelength available.

Q: What parameters can DDM monitor?

A: Module temperature, supply voltage, laser bias current, transmit & receive optical power through I2C serial bus.

Q: Is hot‑swap function supported?

A: Yes, hot‑pluggable following SFP+ MSA hot‑insertion pin sequence.
