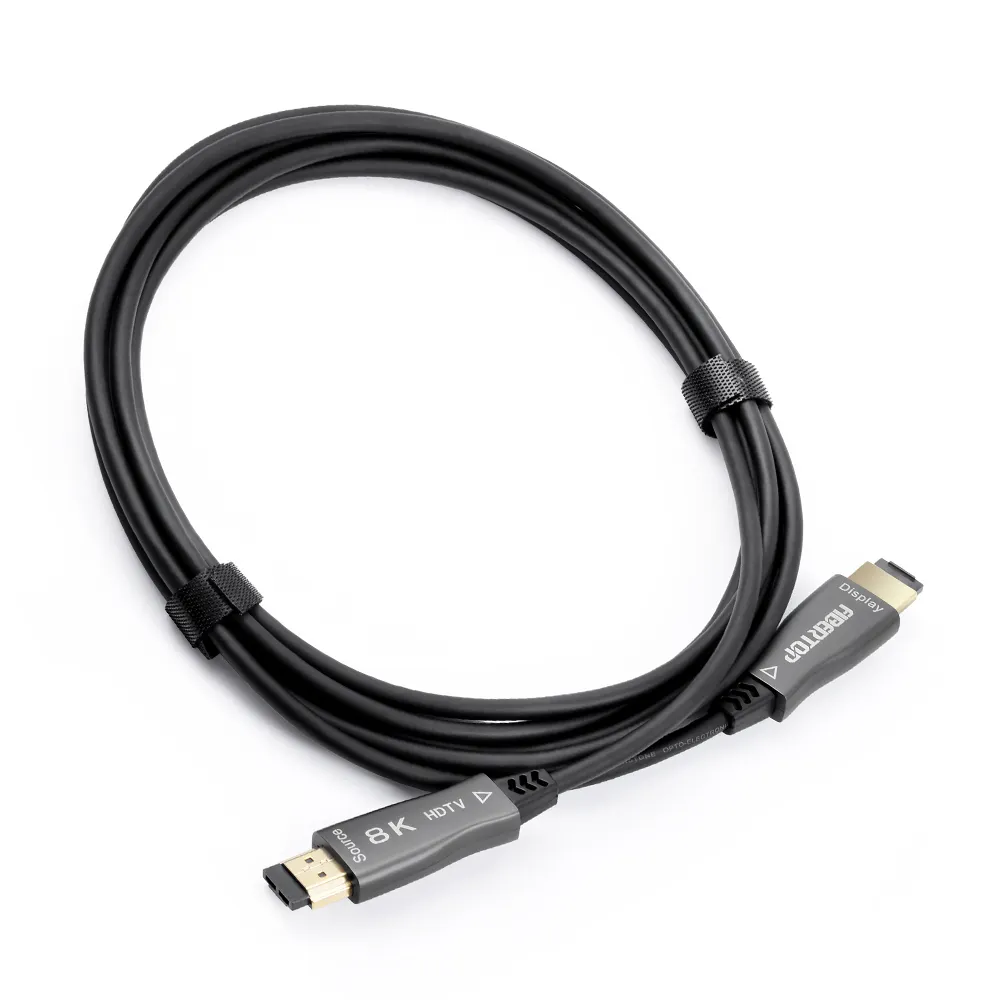

8K HDMI 2.1 Hybrid Active Optical Cables 1

8K HDMI 2.1 Hybrid Active Optical Cables 2

8K HDMI 2.1 Hybrid Active Optical Cables

SKU: HDMI-48G-XXMC

Product Highlights

Extend HDMI up to 100m over fiber optics(MMF)

Compliant to link with all HDMI A-type connector

Compliant with HDMI2.1 version

850nm VCSEL Array transmitters, PIN Array photo-detector receivers

Support 8K@60Hz/4K@120Hz/1080p/1080i/720p format

Support DHCP/EDID/CEC/DDC/Audio

Data rate:48Gbps(12Gbps per channel)

Plug and play, no software to be installed

Longer, thinner cable without EMI/RFI emissions

Low power consumption

All-metal housing for superior EMI performance

RoHS compliant (lead free)

Operating case temperature: 0 to 60℃

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

FIBERTOP 8K HDMI 2.1 Hybrid Active Optical Cables

The HDMI2.1 Cable is a kind of Active Optical Cable (AOC) used to extend the transmission distance between HDMI Source and Sink devices. The transmission distance can be up to 100m through a hybrid cable consisting of optical fibers and copper wires. The high-speed TMDS signals are transmitted through the optical multimode fibers, while the low frequency DDC and control signals are transmitted through the copper wires (see figure 1).

Technical Specification

Vendor Name

FIBERTOP

FIBERTOP Part Number(s)

HDMI-48G-XXMC

Transceiver Type

HDMI

Reach

0-100M

Applications

Blue-ray, DVR, projector

Video Games

Computers and mobile to 8K@60 display

Environment

Operating: 0 to 60°C
