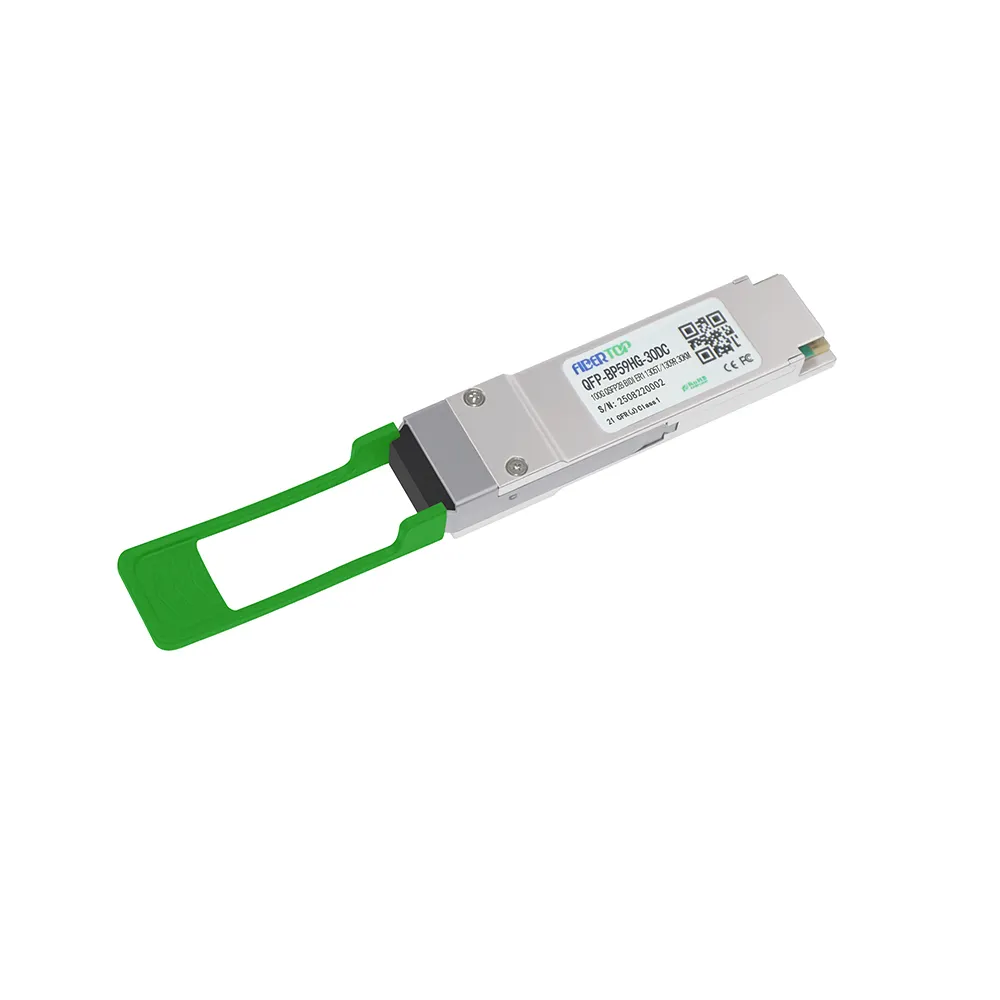

100GBASE-ER1 QSFP28 100G BIDI 30km Tx1305nm/Rx1309nm Transceiver
SKU: QFP-BP59HG-30DC
Product Highlights
Supports 100GBASE-ER1 BIDI
Lane signaling rate 106.25Gb/s with PAM4
Up to 30km transmission on SMF, EML Laser and APD receiver
4x25.78Gb/s with NRZ electrical interface (CAUI-4), QSFP28 MSA package with simplex LC connector
Support KP4 FEC inside the module , I2C interface with integrated Digital Diagnostic monitoring
Single +3.3V power supply, Power consumption <4W
Compliant to 802.3cu, SFF-8636&SFF-8679 standard ,Compliant to 100G Lambda MSA 100G-ER1 Optical Specifications
Complies with EU Directive 2015/863/EU, Operating case temperature: 0 to +70 °C
5.0
order
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
payments:
Required Products
Total price discount:
quantity
Discount
price
Compatible With OEM Part Number(s)
QFP-BP59HG-30DC
Compatible OEM
FIBERTOP
Transceiver Type
ER1
Form Type
QSFP28
Speed Description
100G
Reach
30km
Wave length
Tx1305nm/Rx1309nm
Media
SMF
Connector
SimplexLC
TXPower
0~5.6dBm
Extinction Ratio
>5.0dB
Receiver Sensitivity
<-12.5dBm
100GBASE-ER1 QSFP28 100G BIDI 30km Tx1305nm/Rx1309nm Transceiver
The 100G QSFP28 ER1 BIDI is designed for 30km optical communication applications.
It is intended for the service with single mode fiber in 100Gb/s high speed data communications.
The optical signals are multiplexed to a single-mode fiber through commercial standard LC connector.
Technical Specification
| Vendor Name | FIBERTOP | FIBERTOP Part Number(s) | QFP-BP59HG-30DC |
| Transceiver Type | ER1 | Reach | 30km |
| Wavelength |
Tx1305nm/Rx1309nm |
Form Type | QSFP28 |
| Speed Description | 100G | Media | SMF |
| Connector | Simplex LC | Extinction Ratio | > 5.0 dB |
| TX Power | 0 ~ 5.6 dBm | Receiver Sensitivity | < -12.5 dBm |
| Applications |
Data Center 100 Gigabit Ethernet |
Environment |
Operating:0°C to 70°C Storage: -40°C to 85°C |
