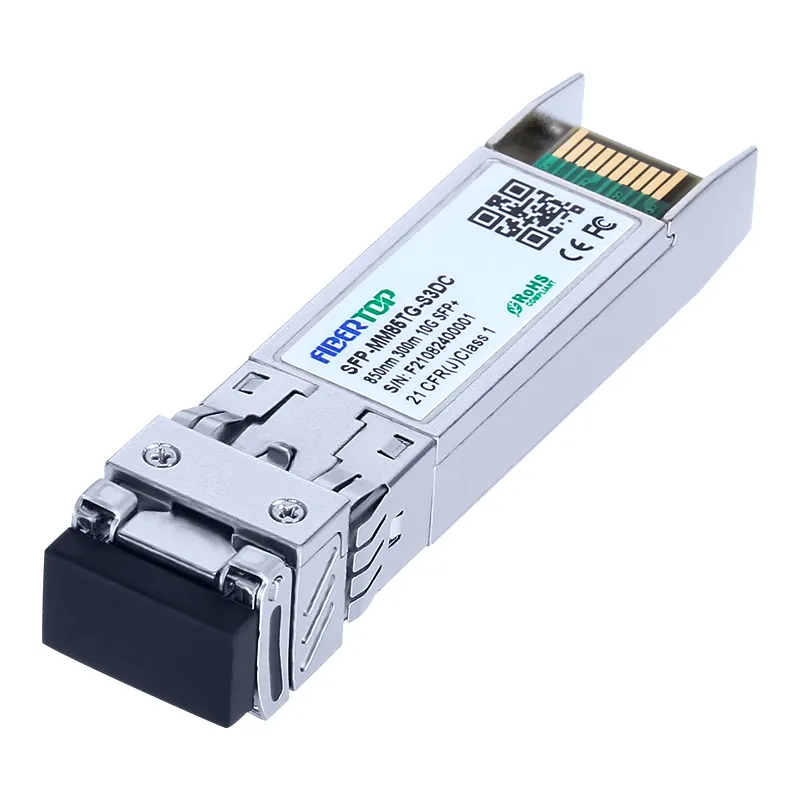

FIBERTOP 10G SR SFP+ MMF 850nm 300m LC DOM Transceiver Module 1

FIBERTOP 10G SR SFP+ MMF 850nm 300m LC DOM Transceiver Module 2

FIBERTOP 10G SR SFP+ MMF 850nm 300m LC DOM Transceiver Module 3

FIBERTOP 10G SR SFP+ MMF 850nm 300m LC DOM Transceiver Module

SKU: SFP-MM85TG-S3DC

Product Highlights

Supports up to 10.7Gbps bit rates

Hot-pluggable SFP+ footprint

850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

SFP-MM85TG-S3DC

Compatible OEM

FIBERTOP

Transceiver Type

Form Type

SFP+

Speed Description

10-Gigabit

Reach

300m

Wave length

850nm

Media

MMF

Connector

TXPower

-6.0~-0.5dBm

Extinction Ratio

>3dBm

Receiver Sensitivity

<-10.5dBm

FIBERTOP 10G SR SFP+ Transceiver MMF 850nm 300m LC DOM

The SFP+ transceivers are high performance, cost effective modules supporting data rate of 10.3Gbps.

The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-MM85TG-S3DC
Transceiver Type	SR	Reach	300m
Wavelength	850nm	Form Type	SFP+
Speed Description	10-Gigabit	Media	MMF
Connector	LC	Extinction Ratio	>3 dBm
TX Power	- 6.0~- 0.5 dBm	Receiver Sensitivity	<-10.5 dBm
Applications	10GBASE-SR at 10.3125Gbps 10GBASE-SW at 9.953Gbps Other Optical links	Environment	Operating:0 to 70℃ Storage: -40°C to 85°C
