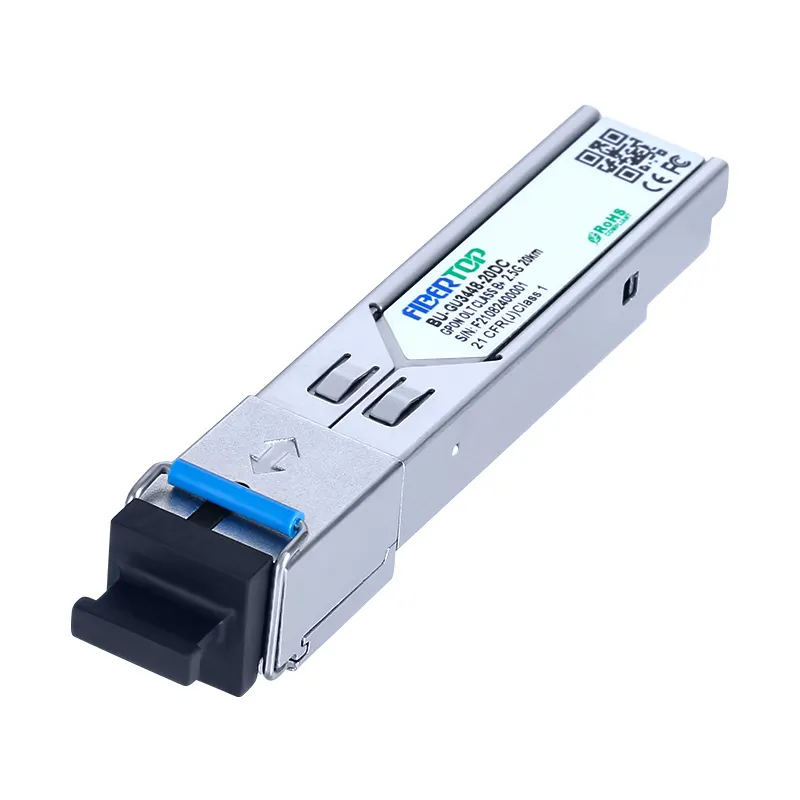

2.5G SFP GPON SC/UPC BOSA T13DFB/R14

SKU:BU-GU3448-20C

Product Highlights

1310nm DFB LD

InGaAs PIN- TIA Receiver With a1490nm WDM Filter

Bitrate: 2.5Gb/s

Connector Type：SC/UPC Pigtail

High Sensitivity

Operation Temperature From -5℃ to +75℃

Optical Isolation>30 dBm,Cross Talk<-40 dBm

RoHS compliant Products Available

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

2.5G SC/UPC BOSA T13DFB/R14 GPON

The 2.5G GPON ONU/OLT SFP Transceiver with supports data rate of typical 2.488 Gbps for application up to 20km transmission distance.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	BU-GU3448-20C
Transceiver Type	GPON	Reach	20km
Wavelength	1310nm Tx/1490nm Rx	Form Type	SFP
Speed Description	2.5-Gigabit	Media	SMF
Connector	SC	Center Wavelength	1290-1330NM
Optical Output power	0.6-1.2mW	Receiver Sensitivity	<-29dBm
Applications	2.5Gbps Linking	Environment	Operating:-5 to 75°C Storage: -40°C to 85°C
