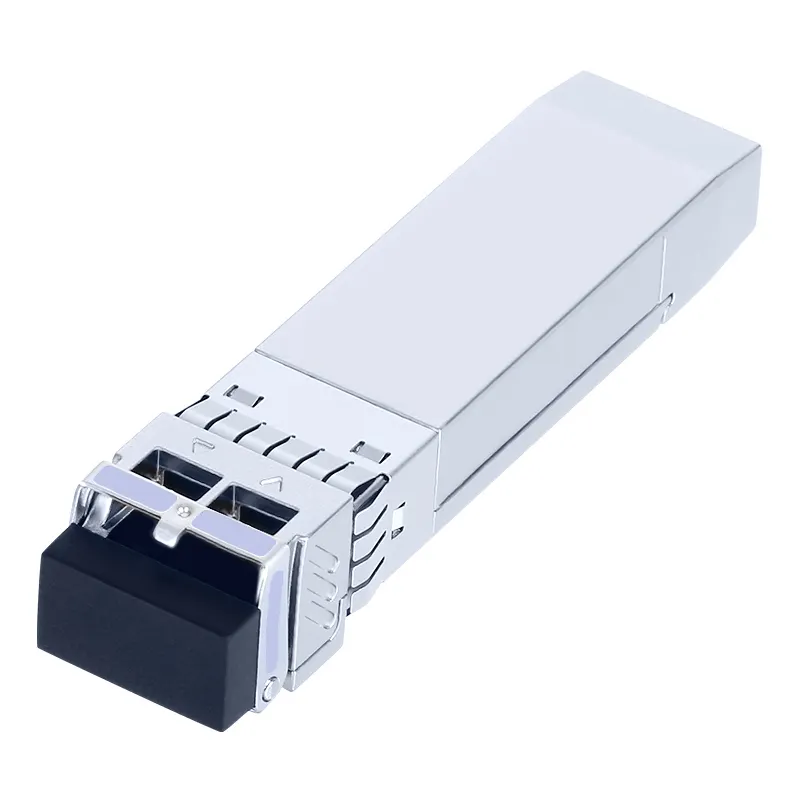

FIBERTOP 25G SFP28 CWDM 40km 1270nm~1370nm Transceiver

SKU: SFP-CDxxT5-40DC

Product Highlights

Supports up to 25.78Gbps bit rates

Hot-pluggable SFP+ footprint

Duplex LC connector

Compliant with SFP MSA and SFF-8472

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

FIBERTOP 25G SFP28 CWDM 40km 1270nm~1370nm

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

SFP-CDxxT5-40DC

Compatible OEM

FIBERTOP

Transceiver Type

CWDM

Form Type

SFP28

Speed Description

25-Gigabit

Reach

40km

Wave length

1270nm~1370nm

Media

SMF

Connector

LCDuplex

FIBERTOP 25G SFP28 CWDM 40km 1270nm~1370nm Transceiver

25G CWDM SFP28 transceivers (CH 1271, 1291, 1311, 1331, 1351, 1371) are designed for use in Ethernet links up to 25.78 Gb/s data rate and up to 30 km link length whitout FEC and 40km With FEC . They are compliant SFF-8472, and compatible with SFF-8432 and applicable portions of SFF-8431. The product is RoHS compliant.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-CDxxT5-40DC
Transceiver Type	CWDM	Reach	40km
Wavelength	1270nm~1370nm	Form Type	SFP28
Speed Description	25G	Media	SMF
Connector	Duplex LC	Extinction Ratio	> 3.5 dB
TX Power	0 ~ 6 dBm	Receiver Sensitivity	< -18 dBm
Applications	High-Speed Storage area networks eCPRI&CPRI	Environment	Operating: 0 to 70°C Storage: -40 to 85°C
