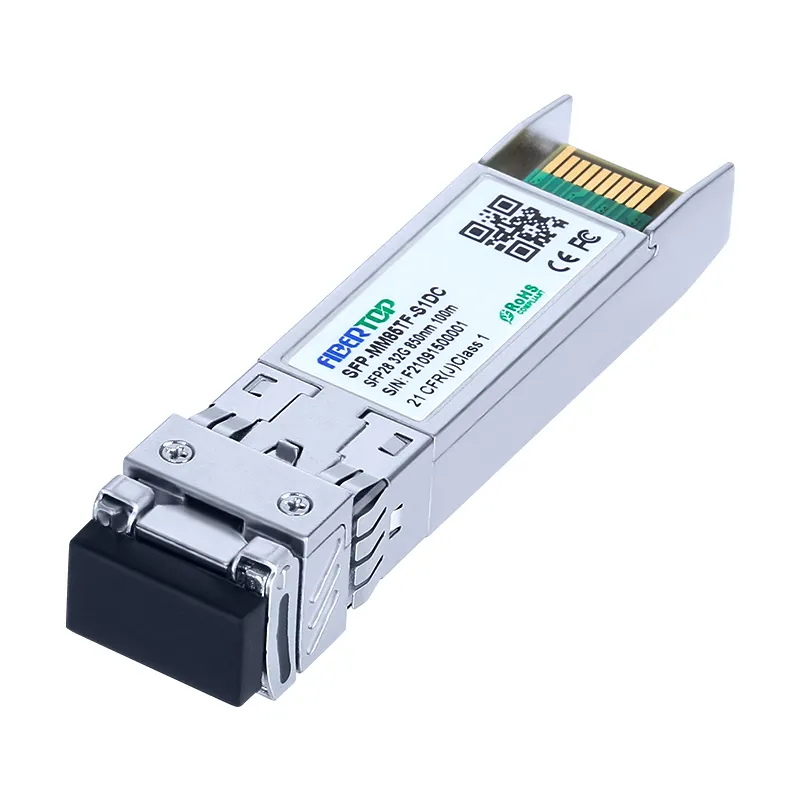

32G SFP28 SR MM 850nm 100m Transceiver 1

32G SFP28 SR MM 850nm 100m Transceiver 2

32G SFP28 SR MM 850nm 100m Transceiver 3

32G SFP28 SR MM 850nm 100m Transceiver

SKU: SFP-MM85TF-S1DC

Product Highlights

Supports up to 28.05Gbps bit rates

Hot-pluggable SFP+ footprint

850nm VCSEL laser and PIN photodiode, 100m over M5F MMF (50/125 um OM4)

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

32G SFP28 SR Transceiver MMF 850nm 300m LC DOM

The 32G SFP28 SR transceivers are high performance, cost effective modules supporting data rate of 28.05Gbps over multimode fiber.

The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-MM85TF-S1DC
Transceiver Type	Fiber Channel	Reach	100m
Wavelength	850nm	Form Type	SFP28
Speed Description	28-Gigabit	Media	MMF
Connector	LC	Extinction Ratio	>2 dBm
TX Power	-6.2 ~ 2 dBm	Receiver Sensitivity	<-10.2 dBm
Applications	Tri-Rate 8.5/14.025/28.05 Gb/s Fibre Channel	Environment	Operating:0 to 70°C
