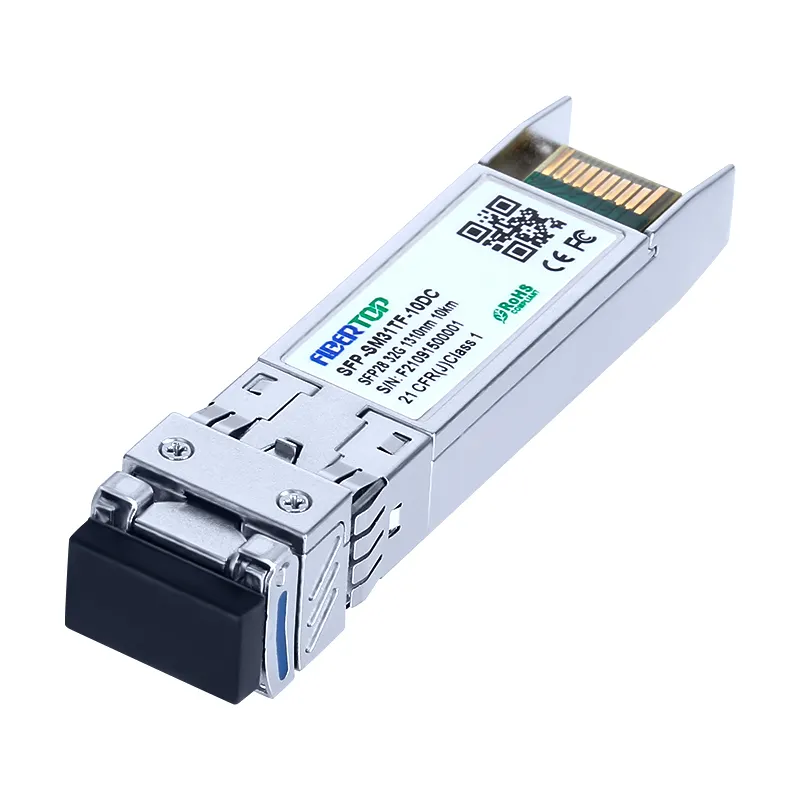

32G Fiber Channel SFP28 LR 1310nm 10km Transceiver Module 1

32G Fiber Channel SFP28 LR 1310nm 10km Transceiver Module 2

32G Fiber Channel SFP28 LR 1310nm 10km Transceiver Module 3

32G Fiber Channel SFP28 LR 1310nm 10km Transceiver Module

SKU: SFP-SM31TF-10DC

Product Highlights

Supports up to 28.05Gbps bit rates

Hot-pluggable SFP+ footprint

1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

32G-SFP28-LR 1310nm 10km LC DOM Transceiver Module

The 32G-SFP28-LR transceivers are high performance, cost effective modules supporting data rate of 28.05Gbps and 10km transmission distance with SMF. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM31TF-10DC
Transceiver Type	Fiber Channel	Reach	10km
Wavelength	1310nm	Form Type	SFP28
Speed Description	28-Gigabit	Media	SMF
Connector	LC	Extinction Ratio	>4 dBm
TX Power	-7~+2 dBm	Receiver Sensitivity	<-11.6 dBm
Applications	16GFC/32GFC Fibre channel	Environment	Operating:0 to 70°C
