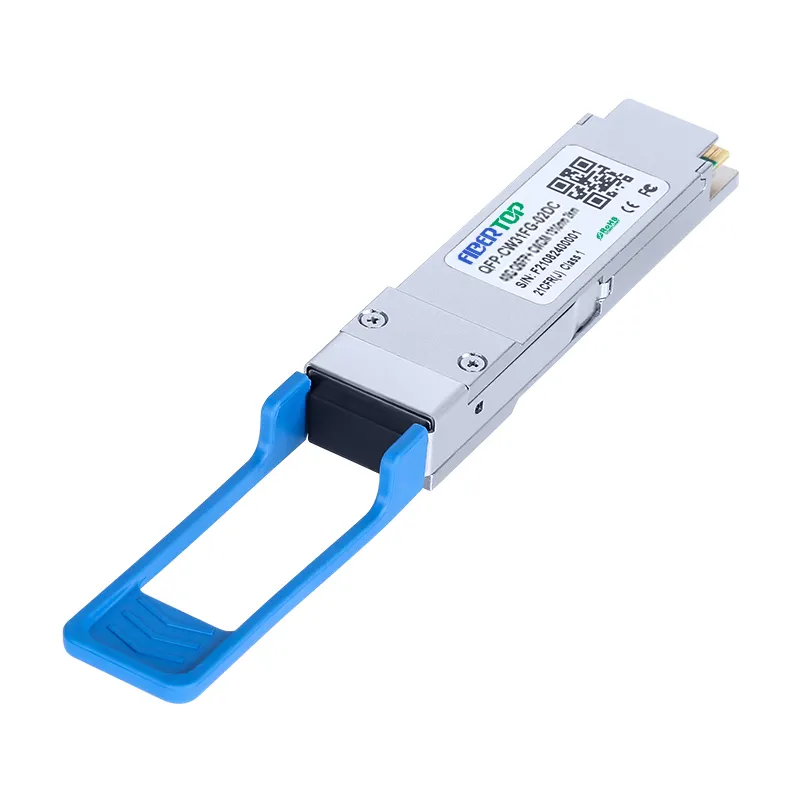

FIBERTOP 40G QSFP+ SMF 1310nm CWDM4 2km LC DOM Transceiver Module 1

FIBERTOP 40G QSFP+ SMF 1310nm CWDM4 2km LC DOM Transceiver Module 2

FIBERTOP 40G QSFP+ SMF 1310nm CWDM4 2km LC DOM Transceiver Module

SKU: QFP-CW31FG-02DC

Product Highlights

4 CWDM lanes MUX/DEMUX design

Transmission data rate up to 11.3Gbps per channel

SMF LC duplex connector

Hot Pluggable QSFP+ form factor

Up to 2km SMF or 150m om4 MMF transmission

Compatible with RoHS

Single +3.3V power supply

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-CW31FG-02DC

Compatible OEM

FIBERTOP

Transceiver Type

1310nmCWDM4

Form Type

QSFP+

Speed Description

40-Gigabit

Reach

2km

Wave length

1271/1291/1311/1331nm

Media

SMF

Connector

TXPower

-7~+2.3dBm

Extinction Ratio

>3.5dBm

Receiver Sensitivity

<-11.5dBm

FIBERTOP 40G QSFP+ SMF 1310nm CWDM4 2km LC DOM Transceiver Module

The QFP-CW31FG-02DC transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 2km transmission distance with SMF or 100m om4 MMF. The transceiver consists of three sections: 4 inputs channels (ch) of 10Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 40Gb/s optical transmission; on the receiver side, the module optically de-multiplexes a 40Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data; and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with 40GBASE-LX4 of IEEE802.3ba standard and SFF-8436 specification.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-CW31FG-02DC
Transceiver Type	1310nm CWDM4	Reach	2km
Wavelength	1271/1291/1311/1331nm	Form Type	QSFP+
Speed Description	40-Gigabit	Media	SMF
Connector	LC	Extinction Ratio	>3.5 dBm
TX Power	-7~+2.3 dBm	Receiver Sensitivity	<-11.5 dBm
Applications	40GBASE-LX4 Ethernet Infiniband QDR and DDR interconnects Client-side 40G Datacom connections	Environment	Operating:0 to 70C
