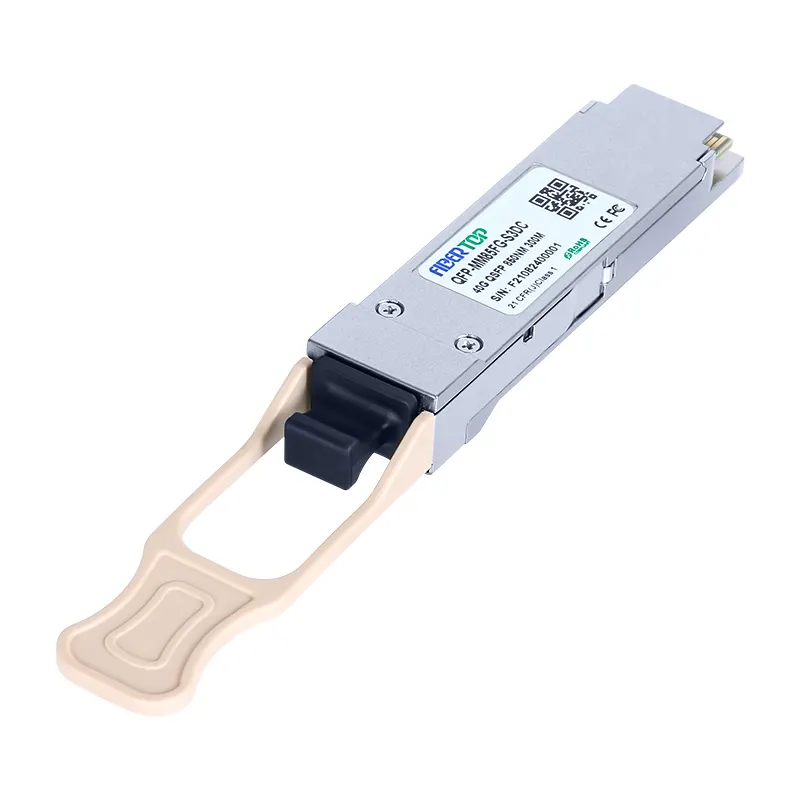

FIBERTOP 40G SR QSFP+ MMF 850nm 300m MPO DOM Transceiver Module 1

FIBERTOP 40G SR QSFP+ MMF 850nm 300m MPO DOM Transceiver Module 2

FIBERTOP 40G SR QSFP+ MMF 850nm 300m MPO DOM Transceiver Module

SKU: QFP-MM85FG-S3DC

Product Highlights

4 channels full-duplex transceiver modules,10.3125Gb/s data rate per channel

4 channels 850nm VCSEL array, 4 channels PIN photo detector array

Hot Pluggable QSFP+ form factor

Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-MM85FG-S3DC

Compatible OEM

FIBERTOP

Transceiver Type

Form Type

QSFP+

Speed Description

40-Gigabit

Reach

300m

Wave length

850nm

Media

MMF

Connector

MPO

TXPower

-7.6~-2.4dBm

Extinction Ratio

>3dBm

Receiver Sensitivity

<-9.9dbm

FIBERTOP 40G SR QSFP+ Transceiver MMF 850nm 300m LC DOM

The QSFP+ eSR4 transceivers are high performance, cost effective modules supporting data rate of 40Gbps and 300m transmission distance with MMF.

The transceiver consists of three sections: 4 channels 850nm VCSEL array, 4 channels PIN photo detector array and MCU control unit. All modules satisfy class I laser safety requirements.

The transceivers are compatible with 40GBASE-SR4 of IEEE802.3ba standard and SFF-8436 specification.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-MM85FG-S3DC
Transceiver Type	SR	Reach	300m
Wavelength	850nm	Form Type	QSFP+
Speed Description	40-Gigabit	Media	MMF
Connector	MPO	Extinction Ratio	>3 dBm
TX Power	- 7.6~- 2.4 dBm	Receiver Sensitivity	<-9.9 dBm
Applications	40GBASE-SR4 Ethernet Switch, router and HBAs Infiniband transmission at 4 channels SDR, DDR and QDR High-performance Backplane Applications Proprietary Protocol Applications	Environment	Operating: 0 to 70℃ Storage: -40°C to 85°C

Questions & Answers

Q：Is this 40G SR4 compatible with Arista switches?

A：Yes, it is.

Q：So can I use the 40G SR4 Arista code to write to a 40G AOC?

A：Yes, no problem.
