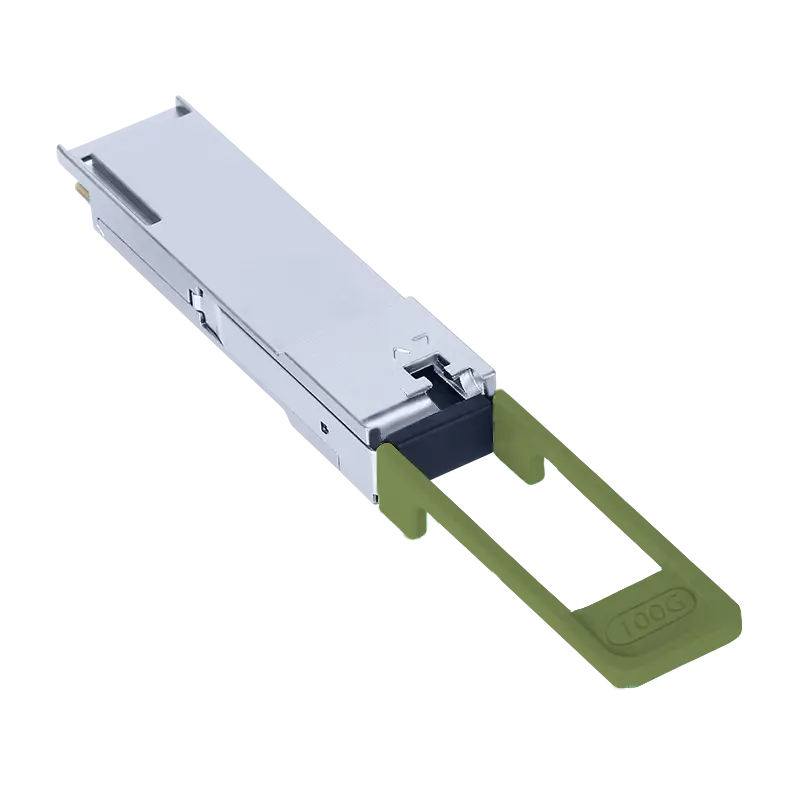

100GBASE BIDI 80km QSFP-100G-ZR4 LAN WDM Transceiver

SKU: QFP-BL32HG-80DC

Product Highlights

Supports 103.125Gb/s aggregate bit rate

Built-in 4-channel Clock and Data Recovery (CDR) in TX and RX

LAN WDM EML laser and PIN receiver with SOA

Up to 80km reach for G.652 SMF

Hot pluggable 38 pin electrical interface

Single +3.3V power supply

Maximum power consumption 5.5W

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Compatible With OEM Part Number(s)

QFP-BL32HG-80DC

Compatible OEM

FIBERTOP

Transceiver Type

BIDIZR4

Form Type

QSFP28

Speed Description

100-Gigabit

Reach

80km

Wave length

Tx1331nmRx1271nm

Media

SMF

Connector

LCSimplex

TXPower

-0.3~+4.0dBm

Extinction Ratio

6dB

Receiver Sensitivity

<-26dBm

100G BIDI 80km QSFP-100G-ZR4 Transceiver

QSFP-100G-ZR4 is designed for 80km optical communication applications. This module contains 4-lane optical transmitter, 4-lane optical receiver and module management block including 2 wire serial inter-face. The optical signals are multiplexed to a single-mode fiber through an industry standard LC connector.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	QFP-BL32HG-80DC
Transceiver Type	BIDI ZR4	Reach	80km
Wavelength	Tx1331nm Rx1271nm	Form Type	QSFP28
Speed Description	100-Gigabit	Media	SMF
Connector	LC Simplex	Extinction Ratio	6 dB
TX Power	- 0.3~+4.0 dBm	Receiver Sensitivity	<-26 dBm
Applications	100GBASE-ZR4 Ethernet Links Infiniband QDR and DDR interconnects Telecom networking	Environment	Operating:0 to 70℃

Questions & Answers

Q：Can your 100G BIDI transmit 100 kilometers?

A：Sorry, we are currently only able to transmit 80km with 100G BIDI.
