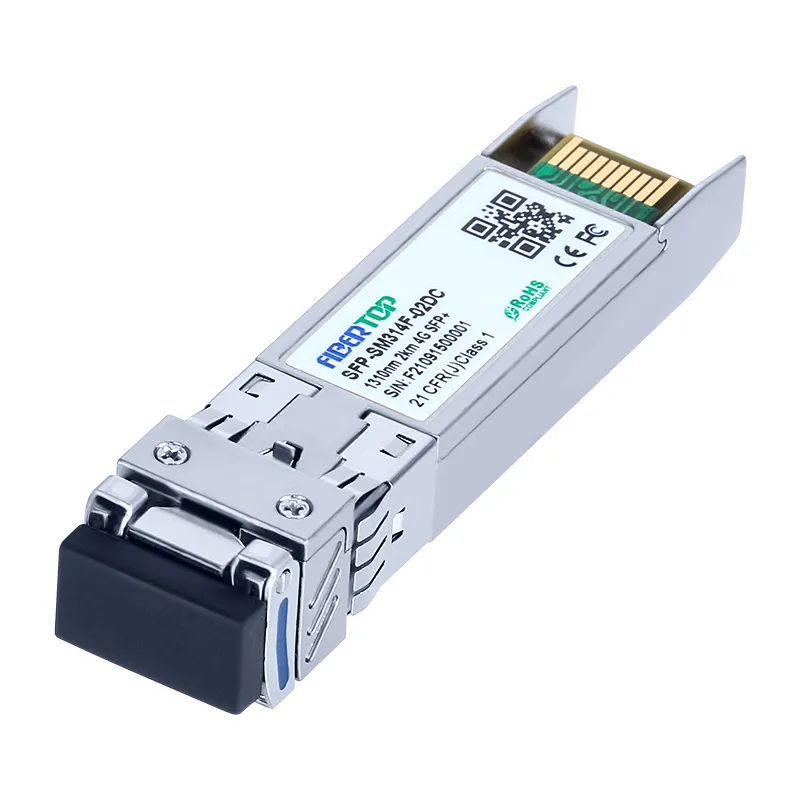

SFP+ 4G Fiber Channel 1310nm 2km LC Transceiver Module 1

SFP+ 4G Fiber Channel 1310nm 2km LC Transceiver Module 2

SFP+ 4G Fiber Channel 1310nm 2km LC Transceiver Module 3

SFP+ 4G Fiber Channel 1310nm 2km LC Transceiver Module

SKU: SFP-SM314F-02DC

Product Highlights

Support for 4.25Gb/s data rate

Hot-pluggable SFP+ footprint

Up to 2km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

SFP+ 4G Fiber Channel SFP+ Transceiver SMF 1310nm 2km LC DOM

This SFP+ 4G Fiber Channel transceiver is high performance, cost effective modules supporting data rate of 4.25 Gbps.

The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.

All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM314F-02DC
Transceiver Type	Fiber Channel	Reach	2km
Wavelength	1310nm	Form Type	SFP
Speed Description	4.25-Gigabit	Media	SMF
Connector	LC	Extinction Ratio	>5 dBm
TX Power	-6~-1 dBm	Receiver Sensitivity	<-10.5 dBm
Applications	4Gbps Optical systems 1x/2x/4x Fiber channel systems Other	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
