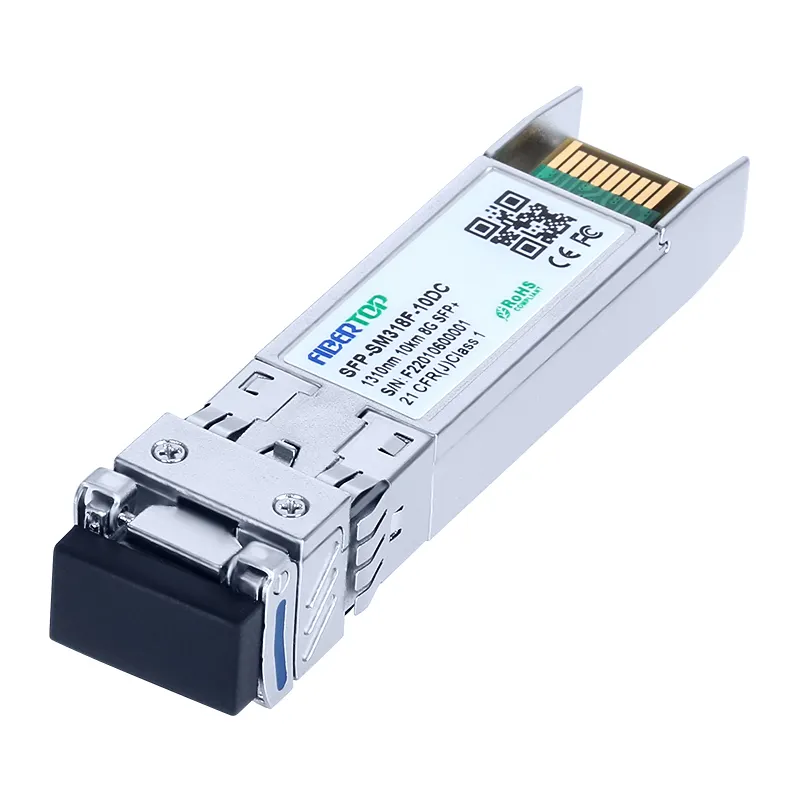

8G Fiber Channel SFP+ LR 1310nm 10km Transceiver

SKU: SFP-SM318F-10DC

Product Highlights

Supports up to 8.5Gbps bit rates

Hot-pluggable SFP+ footprint

1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

8G Fiber Channel SFP+ LR Transceiver SMF 1310nm 2km LC DOM

The 8G Fiber Channel SFP+ LR transceivers are high performance, cost effective modules supporting data rate of 10Gbps and 2km transmission distance with SMF. The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-SM318F-10DC
Transceiver Type	Fiber Channel	Reach	10km
Wavelength	1310nm	Form Type	SFP+
Speed Description	8.5 Gigabit	Media	SMF
Connector	LC Duplex	Extinction Ratio	>3.5 dBm
TX Power	-6.5~-0.5 dBm	Receiver Sensitivity	<-14.4 dBm
Applications	Tri-Rate 2.125/4.25/8.5Gbps Fiber Channel Wireless – CPRI and OBSAI Other Optical links	Environment	Operating: 0 to 70°C Storage: -40°C to 85°C
