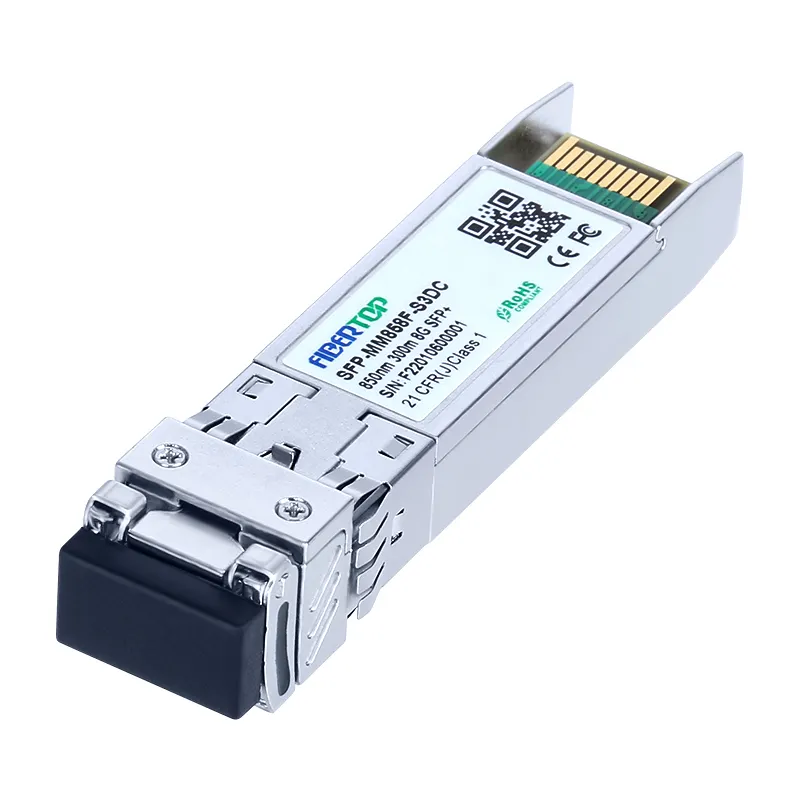

8G Fiber Channel SFP+ SR 850nm 300m Transceiver 1

8G Fiber Channel SFP+ SR 850nm 300m Transceiver 2

8G Fiber Channel SFP+ SR 850nm 300m Transceiver 3

8G Fiber Channel SFP+ SR 850nm 300m Transceiver

SKU: SFP-MM858F-S3DC

Product Highlights

Support for8.5Gb/s data rate

Hot-pluggable SFP+ footprint

850nm VCSEL laser and PIN photodiode, Up to 300m for OM3-MMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Download File

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

8G Fiber Channel SFP+ SR Transceiver MMF 850nm 300m LC DOM

This 8G Fiber Channel SFP+ SR transceiver is high performance, cost effective modules supporting data rate of 8.5 Gbps.

The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit.

All modules satisfy class I laser safety requirements.

The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Technical Specification

Vendor Name	FIBERTOP	FIBERTOP Part Number(s)	SFP-MM858F-S3DC
Transceiver Type	Fiber Channel	Reach	300m
Wavelength	850nm	Form Type	SFP+
Speed Description	8.5-Gigabit	Media	MMF
Connector	LC	Extinction Ratio	>3.0 dBm
TX Power	-6~-0.5 dBm	Receiver Sensitivity	<-10.5 dBm
Applications	Tri-Rate 2.125/4.25/8.5Gbps Fiber Channel Wireless – CPRI and OBSAI Other Optical links	Environment	Operating:0 to 70°C Storage: -40°C to 85°C
